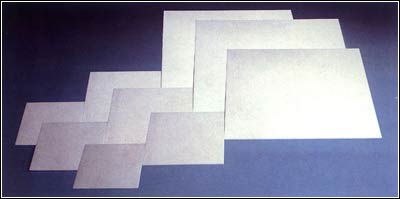

Polytetrafluoroethylene(PTFE)Resin Moded sheet

[ Features ]
PTFE molded sheet is manufactured by molding method with PTFE granular resin.
PTFE is the most chemical resistance of all known plastics. It does not age. It has the lowest coefficient of friction of all known solid materials and a wide range of practicable temperature from-180+260.


[ specifications ]

Length(mm) Width(mm)

Thickness(mm)

Nominal

tolerance

150150

1.030

0.300.50

250250

1.530

0.300.50

300300

1.530

0.300.50

450450

1.530

0.300.50

600600

230

0.300.50

800800

330

0.300.50

10001000

330

0.300.50

12001200

330

0.300.50

10002000

535

0.300.60

[ Main properties ]

Properties

unit

Result

Apparent density

g/cm3

2.10-2.30

  Tensile strength(min)

MPa

15.0

Ultimate elongation(min)

%

150

Dielectric strength(min)

KV/mm

10

[ Applications ]
Lining Bearing pads, seals, and electrical insulation.
