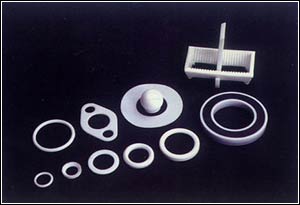

Polytetrafluoroethylene Gasket

[ Features ]
PTFE gasket is manufactured by molding method with PTFE granular resin.
PTFE compared with other plastics, has a superior properties against chemicals and temperature.
Because of such excellent properties, PTFE has a wide application as a sealing material.



[ specifications ]

outside diameter/inside diameterheight(mm)

outside diameter/inside diameterheight(mm)

outside diameter/inside diameterheight(mm)

outside diameter/inside diameterheight(mm)

12.5/8.52

28/242

43/272

71/592

14/4.33

28/243.2

44/323

74/682.5

14/83

30/205

46/37.52

75/483

16/5.23

30/242

47.5/36.52.5

82/723

19.5/112

32/203

48/323

85/622

20/6.53

33/272

48/432

85/752

20/122

33.5/29.52

50/104

90/762

20/143

34/281.5

52/41.52

90/802

21/162.4

37/212

52/42/122

95/722

24/173

40.5/36.52

58/383

115/952

24/182

41/322

63/532

120/1103

24.2/182.5

41/34/122

65/523

135/1103

26/6.53

42/342

70/602.5

150/1402.5

155/1352

164/1375

219/1913

250/2202

310/2862



[ Main properties ]

Properties

unit

Result

Apparent density

g/cm3

2.10-2.30

Tensile strength (min)

MPa

15.0

Ultimate  elongation (min)

%

150

[ Applications ]
Sealing material.
