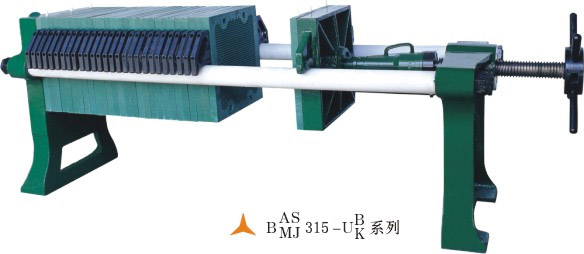

BS315 plate-and-frame filter press
（manual）
Model
Filtration area M
2
Volume of filter cell L
Size of external frame mm
Thickness of filter board mm
Number of of filter cell
PCS
Thickness of filter cake mm
Size
L*W*H
mm
Power KW
Operation pressure of filter cell
MPa
Weight Kg
B
M
A
S0.6/315-U
K
B
0.6
8
315*280
25
6
25
1003*564*492
-
≤ 0.6
140
B
M
A
S1/315-U
K
B
1
13
315*280
25
10
25
1207*564*492
-
≤ 0.6
160
B
M
A
S1.6/315-U
K
B
1.6
21
315*280
25
16
25
1513*564*492
-
≤ 0.6
170
B
M
A
S2/315-U
K
B
2
26
315*280
25
20
25
1717*564*492
-
≤ 0.6
190
B
M
A
S2.5/315-U
K
B
2.5
33
315*280
25
25
25
1972*564*492
-
≤ 0.6
200
B
M
A
S3/315-U
K
B
3
39
315*280
25
30
25
2227*564*492
-
≤ 0.6
220
