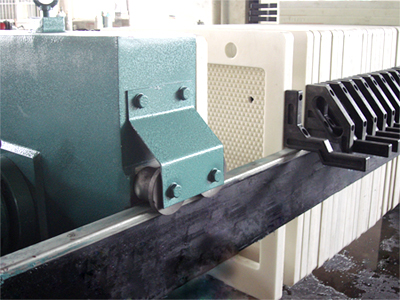

BMY650 filter press

Model	Filtration area M²	Volume of filter cell L	Size of external frame mm	Thickness of filter board mm	Number of of filter cell PCS	Thickness of filter cake mm	Size LWH mm	Power KW	Operation pressure of filter cell MPa	Weight Kg
BMAYJ5/650-UKB	5	80	650*650	30	10	32	196310501025	-	≤ 0.6	970
BMAYJ10/650-UKB	10	160	650*650	30	20	32	257310501025	-	≤ 0.6	1160
BMAYJ15/650-UKB	15	240	650*650	30	30	32	318310501025	-	≤ 0.6	1360
BMAYJ20/650-UKB	20	320	650*650	30	40	32	379310501025	-	≤ 0.6	1560
BMAYJ25/650-UKB	25	400	650*650	30	50	32	440310501025	-	≤ 0.6	1750

Model	Filtration area M²	Volume of filter cell L	Size of external frame mm	Thickness of filter board mm	Number of of filter cell PCS	Thickness of filter cake mm	Size LWH mm	Power KW	Operation pressure of filter cell MPa	Weight Kg
BMAYJ5/650-UKB	5	80	650*650	30	10	32	196310501025	1.5	≤ 0.6	970
BMAYJ10/650-UKB	10	160	650*650	30	20	32	257310501025	1.5	≤ 0.6	1160
BMAYJ15/650-UKB	15	240	650*650	30	30	32	318310501025	1.5	≤ 0.6	1360
BMAYJ20/650-UKB	20	320	650*650	30	40	32	379310501025	1.5	≤ 0.6	1560
BMAYJ25/650-UKB	25	400	650*650	30	50	32	440310501025	32	≤ 0.6	1750
