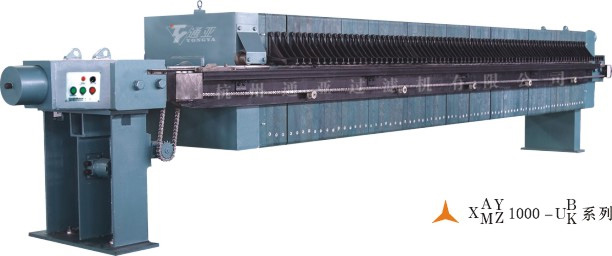

1000 automatic draw plate series

Model	Filtrati -on area M²	Volume of filter cell L	Size of external frame mm	Thick-ness of filter board mm	Number of of filter cell PCS	Thickness of filter cake mm	Size LWH mm	Power KW	Operation pressure of filter cell MPa	Weight Kg
XMAYJ32/1000-UKB	32	480	1000*1000	60	20	30	414514601523	1.5	≤ 1	4320
XMAYJ40/1000-UKB	40	600	1000*1000	60	24	30	438914601523	1.5	≤ 1	4510
XMAYJ50/1000-UKB	50	750	1000*1000	60	30	30	475514601523	1.5	≤ 1	4790
XMAYJ60/1000-UKB	60	900	1000*1000	60	36	30	512114601523	1.5	≤ 1	5070
XMAYJ70/1000-UKB	70	1050	1000*1000	60	42	30	548714601523	1.5	≤ 1	5360
XMAYJ80/1000-UKB	80	1200	1000*1000	60	48	30	585314601523	1.5	≤ 1	5640
XMAYJ90/1000-UKB	90	1350	1000*1000	60	54	30	621914601523	1.5	≤ 1	5920
XMAYJ100/1000-UKB	100	1500	1000*1000	60	60	30	658514601523	1.5	≤ 1	6200
XMAYJ120/1000-UKB	120	1800	1000*1000	60	72	30	731714601523	1.5	≤ 1	6770

Model	Filtrat-ion area M²	Volume of filter cell L	Size of external frame mm	Thick -ness of filter board mm	Number of filter cell PCS	Thick-ness of filter cake mm	Size LWH mm	Power KW	Operation pressure of filter cell MPa	Weight Kg
XMAZ40/1000-UKB	40	600	1000*1000	60	24	30	361815001555	3	≤ 1	4800
XMAY50/1000-UKB	50	750	1000*1000	60	30	30	361815001555	3	≤ 1	5240
XMAY60/1000-UKB	60	900	1000*1000	60	36	30	361815001555	3	≤ 1	5670
XMAY70/1000-UKB	70	1050	1000*1000	60	42	30	361815001555	3	≤ 1	6110
XMAY80/1000-UKB	80	1200	1000*1000	60	48	30	361815001555	3	≤ 1	6550
XMAY90/1000-UKB	90	1350	1000*1000	60	54	30	361815001555	3	≤ 1	6990
XMAY100/1000-UKB	100	1500	1000*1000	60	60	30	361815001555	3	≤ 1	7430
XMAY120/1000-UKB	120	1800	1000*1000	60	72	30	361815001555	3	≤ 1	8310
