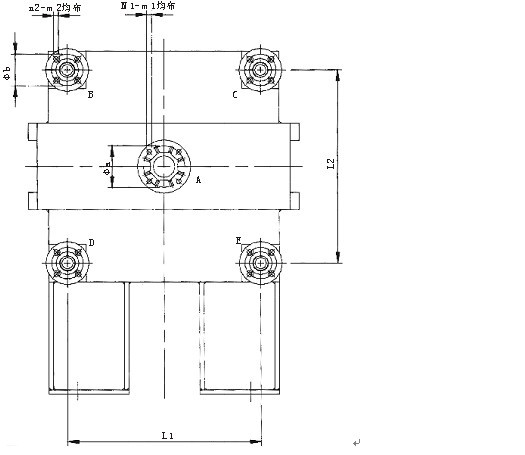

Figure 7, Schematic diagram of nozzle

* Note:

1, flange Executive Standard: GB9123.9-1988 "convex steel pipe flange covers";
2, the company offers matching flanges in a pipe, and the other piece flange be user-configuration;
3, in which X/630 series of L1 and L2 size of 530 × 530 for the embedded cloth configuration size.
