Plastic-wooden composite extrusion production line

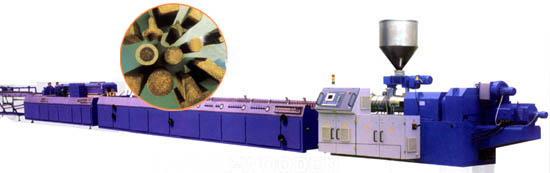

PLASTIC-WOODEN COMPOSITE EXTRUSION PRODUCTION LINE
Features and Application:

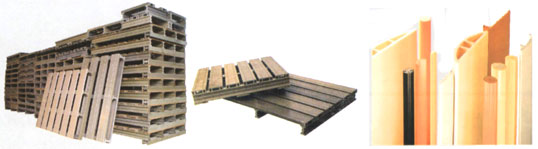

The unit be mainly used to produce PE,PP etc. materials and scrap plastic-wood shape-timber & PVC shape-timber etc.
Main Technical Parameter
Double-screw Series Extruders
DIAMETER OF SCREW （mm)
POWER OF MOTOR （kw)
Speed（Mpa(RPM)
UPV(kg/h)
φ35/75
11
46.5
70
φ45/97
18.5
42
120
φ55/110
30
40
180
φ65/132
37
40
250
φ80/156
75
38
450
φ92/188
110
30
650
Calibrating and Cooling Vnits
Effective long(mm)
power of pen(kw)
（mm)
6000,8000
5.5+4x2
+
100
+
5°
3500
4x2
+
75
+
5°
Haul-off Unit
Power of Main frame(kw)
power of line
Speed（mm)
4
6
3000
2.2
12
1800
