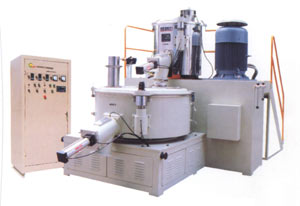

SRL-Z Vertical Mixer Group

1.It is used in mixing, drying, colouring and other processing. It is the most ideal equipment for producing shaped plastic material and plastics pipes.
2.The technology of the mainshaft sealed apparatus has got the state patent with No.ZLP62430641 and it has two funetions of electric and steam heating.
3.Two layers of sealing technology is adopted in the pot cover. The opening of the heating mixedcover adopted the airopening device and the opening of the cooling mixed cover adopted hydraulic pressure control system.
4.The electric control section with the programmable logic control adopted well-known imported meters and control components.
5.It is equipped with the pulse dust-cleaning recovey device.
6.The blades have been passed the test of the dynamic and static balance testing machine.
7.You may choose the simple and easy feeding system.


SRL-Z Series Mixer Group (A Type )


SRL-Z Series Mixer Group(B Type)

Main Technical Parameters :
Model
Capacity
(L)
Effective
Capacity
(L)
Paddle (rpm)
Motor & Heating Power
(kw)
Water Consumption
(T/h)
Gases Consumtion
m³/(min)
A SRL-Z100/200
100/200
75/160
650
/1300/180
14/22
/7.5/6
3.5
0.3
SRL-Z200/500
200
/500
150
/320
475
/950/130

30/42
/11/9

5
0.4
SRL-Z300/600
300
/600
20
/360
475
/950/110
40/55
/15/9
5.8
0.4
SRL-Z300/1000
300
/1000
200
/640
475
/950/110
40/55
/15/9
6.7
0.4
SRL-Z500/1000A
500
/1000
375
/640
430
/260/50
47/67
/15/12
7.8
0.40
B SRL-Z500/1000B
500
/1000
375
/640
430
/860/50
55/75
/18.5/12
10
0.45
SRL-Z500/1600
500
/1600
375
/1200
430
/860/50
55/75
/18.5/12
12
0.45
SRL-Z800/2000
800
/2000
600
/1280
370
/740/50
83/110
/30/15
14
0.45
SRL-Z1000/3500
1000
/3500
750
/2600
370
/740/50
110/150
/45/20
17
0.5



  Model
Heating Method
Discharge Method
Ouylook Size
(mm)
Weight
(T)
Mixing Time m/p.pot
Heat
Cool
A SRL-Z100/200
Electricy/
Sel-friction
Manual Opening
/Pneumatics
3780/
1870/2250
3.2
6-10
8-10
SRL-Z200/500
4850
/2240/2740
3.5
6-10
8-10
SRL-Z300/600

4680
/2240/2740

3.8
6-10
8-10
SRL-Z300/1000
4980
/2500/2740
4.2
6-10
8-10
SRL-Z500/1000A
5580
/2700/3432
5.8
6-10
8-10
B SRL-Z500/1000B
4580
/3000/4050
7.8
6-10
8-10
SRL-Z500/1600
4680
/3000/4120
8.5
6-10
8-10
SRL-Z800/2000
5260
/3200/4378
9.5
10
12
SRL-Z1000/3500
6540
/3460/4400
12
10
12
