	FF Type

	KF Type
	KF-500
	KF-1000
	KF-1500
	KF-2000
	KF-3000
	KF-5000

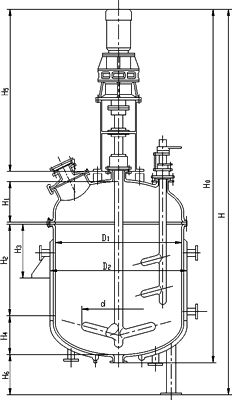

Type	KF
Model	KF-50	KF-100	KF-200	KF-300	KF-500	KF-800	KF-1000	KF-1500	KF-2000	KF-2500	KF-3000	KF-4000	KF-5000	KF-6300
Nominal Capacity(L)	50	100	200	300	500	800	1000	1500	2000	2500	3000	4000	5000	6300
Actual Capacity(L)	70	127	247	369	588	878	1245	1714	2179	2957	3380	4348	5435	6735
Heat Exchange Area(m²)	0.54	0.84	1.5	1.9	2.6	3.7	4.5	5.8	7.2	8.2	9.3	11.7	13.4	16.4
D1 mm	500	600	700	800	900	1000	1200	1300	1300	1600	1600	1600	1750	1750
D2 mm	600	700	800	900	1000	1100	1300	1450	1450	1750	1750	1750	1900	1900
H1 mm	200	235	275	310	335	360	410	435	435	509	509	509	547	547
H2 mm	250	325	485	560	735	910	860	1035	1385	1160	1370	1850	1932.5	2472.5
H3 mm	300	350	380	380	400	450	500	650	650	650	700	700	700	700
H4 mm	150	175	215	240	265	290	340	365	365	440	440	440	477.5	477.5
H5 mm	1007	1007	1022	1120	1155	1155	1309	1309	1309	1358	1358	1358	1475	1475
H6 mm	415	415	420	530	530	535	540	540	540	540	540	540	600	600
d mm	300	360	420	480	540	600	720	720	720	800	800	800	800	800
H mm	2092	2227	2487	2840	3100	3330	3539	3764	4114	4107	4297	4777	5112	5652
Inspection Hole(mm)	80	80	125	125	150	200	300 × 400	300 × 400	300 × 400	300 × 400	300 × 400	300 × 400	300 × 400	300 × 400
HO mm	1752	1887	2142	2385	2645	2805	2894	3119	3469	3382	3572	4052	4187	4727
Reference Weight(Kg)	486	552	704	945	1104	1315	2085	2550	2782	3796	4068	4610	5724	6411
