 Volume damper |
Main performance parameters
Nominal pressure |
0.10 |
MPa |
Shell test pressure |
0.15 |
Allowed velocity of medium |
≤25 |
m/S |
Suitable temperature |
≤300, ≤420, ≤550 |
℃ |
Leakage rate |
≤1% |
Suitable medium |
air |
Parameters of Supported Electric device
Nominal diameter (DN) |
Model |
Power (kw) |
Opening and closing time (S) |
100-200 |
QB30-1 |
0.12 |
15 |
250-350 |
QB60-1 |
0.18 |
15 |
400-450 |
QB90-1 |
0.25 |
15 |
500-700 |
QB120-1 |
0.37 |
15 |
800-1000 |
QB250-1 |
0.55 |
15 |
1100-1200 |
TQ4000 |
0.75 |
45 |
1400-1600 |
TQ8000 |
1.5 |
45 |
1800-2400 |
TQ16000 |
2.2 |
45 |
2600-3000 |
TQ32000 |
5.5 |
45 |

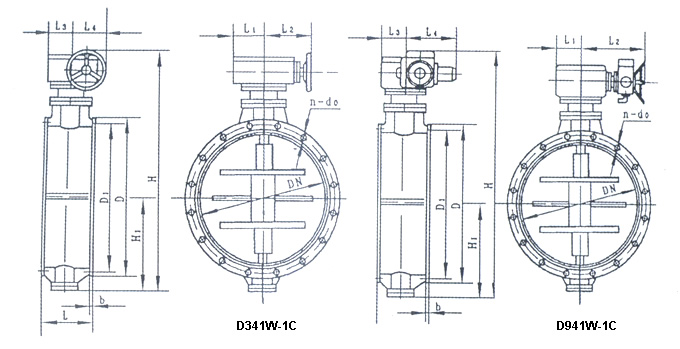

Structure diagram:
|
| |
|
|
|
