 Cinder valve |
Star-shaped Discharge brake GLJW-4型(Impeller feeding machine)
Main performance parameters
Specifications Φ×H (mm) |
Production capacity (m3/hr) |
Rev/minute |
Supported reducer & Motor power |
Φ150×250 |
6 |
34 |
BLY11-43-0.37 |
0.37kw |
Φ200×300 |
12 |
34 |
BLY11-43-0.75 |
0.75kw |
Φ250×400 |
22 |
34 |
BLY11-43-0.75 |
0.75kw |
Φ300×450 |
38 |
34 |
BLY12-43-1.5 |
1.5kw |
Φ350×500 |
58 |
34 |
BLY12-43-1.5 |
1.5kw |
Φ400×600 |
60 |
34 |
BLY12-43-1.5 |
1.5kw |
Φ450×650 |
125 |
34 |
BLY12-43-2.2 |
2.2kw |
Φ500×700 |
180 |
34 |
BLY12-43-2.2 |
2.2kw |

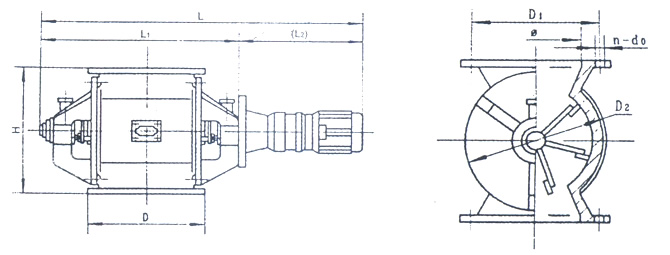

Structure diagram
Link size, Size & Weight of GLJW-4
Specifications Φ×H (mm) |
Φ |
H |
D |
D1 |
D2 |
n-do |
L |
L1 |
L2 |
Reference weight (kg) |
Φ150×250 |
150 |
250 |
260 |
225 |
190 |
8-18 |
810 |
395 |
415 |
350 |
Φ200×300 |
200 |
300 |
320 |
280 |
240 |
8-18 |
905 |
445 |
460 |
425 |
Φ250×400 |
250 |
400 |
375 |
335 |
290 |
12-18 |
955 |
495 |
460 |
550 |
Φ300×450 |
300 |
450 |
440 |
395 |
340 |
12-22 |
1120 |
587 |
533 |
650 |
Φ350×500 |
350 |
500 |
490 |
445 |
390 |
12-22 |
1170 |
637 |
533 |
740 |
Φ400×600 |
400 |
600 |
540 |
495 |
440 |
16-22 |
1220 |
687 |
533 |
870 |
Φ450×650 |
450 |
650 |
595 |
550 |
500 |
16-22 |
1384 |
747 |
637 |
990 |
Φ500×750 |
500 |
750 |
645 |
600 |
560 |
20-22 |
1434 |
797 |
637 |
1150 |
|
| |
|
|
|
