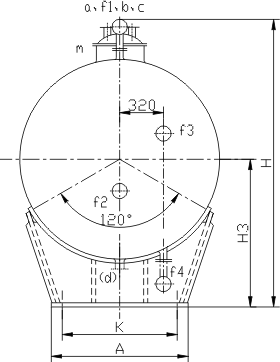

Type	L	L	Dimension(mm)											Nozzle(mm)						Weight kg
Type	L	L	D	H1	H2	H3	H	L1	L2	L3	L	A	K	a	b	c	d	f1-4	m	Weight kg
ZW-3000	3000	3337	1450	1100	1200	1089	2146	934	260	1454	2288	1300	1090	80	65	65	80	65	300 × 400	1732
ZW-4000	4000	4457	1450	1100	1200	1089	2146	1494	320	2134	2968	1300	1090	80	65	65	80	65	300 × 400	2076
ZW-5000	5000	5550	1600	1200	1200	1166	2300	1420	360	2140	3052	1430	1180	80	65	65	80	65	300 × 400	2510
ZW-6300	6300	7024	1750	1300	1300	1243	2454	1474	390	2254	3246	1560	1300	80	65	65	80	65	300 × 400	3200
ZW-8000	8000	8910	1900	1300	1400	1318	2604	1590	420	2430	3496	1690	1420	80	65	65	80	65	300 × 400	3730
ZW-10000	10000	11094	2000	1400	1400	1368	2704	1880	450	2780	3900	1780	1490	100	80	80	100	65	450	4740
ZW-12500	12500	13921	2000	1400	1400	1368	2704	2740	470	3680	4800	1780	1490	100	80	80	100	65	450	5640
ZW-16000	16000	17756	2200	1500	1500	1470	2908	2840	500	3840	5080	1950	1680	100	80	80	100	65	450	6700
ZW-20000	20000	22332	2400	1600	1600	1572	3112	2930	550	4030	5374	2130	1890	100	80	80	100	65	450	8420
ZW-30000	30000	33300	3000	1900	2000	1876	3720	2370	630	3630	5282	2650	2430	100	80	80	100	65	450	12700
ZW-50000	50000	51605	3000	1900	2000	1876	3720	4888	630	6148	7800	2650	2430	100	80	80	100	65	450	18308
