Horizontal frame filter |
Horizontal type frame filter |
|
Application:
This equipment is stainless steel layers frame filter,and it is suitable in viscosity and low concentration below 50%, including the liquid filtration purification for airtight, in order to achieve such filtration sterilization and clarification, except few, particle, half of the precision filtration membrane, direct selection, the Micro porous filter sieve Micro porous membrane can achieve aseptic filtration of machine . It is big Flow, and wide application scope, and it can be used in pharmaceutical, chemical and foodstuff industries.

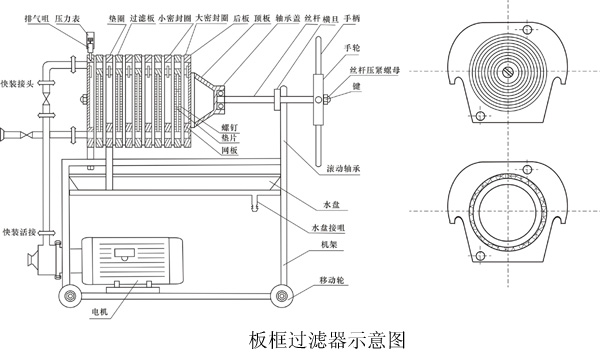

The machine motor powers, other part adopts 304 or 316L Stainless steel materials, high corrosion resistance, and it is suitable for filter in various PH value, acid and alkali solution is applied pressure filter, less waste filtrate airtight with good quality, efficiency, filtration. Filter layer filter plate, Filtering area, big circulation, and according to the different filter solution by early production technology (except few, filter, particle, half precision filtration, fine filtration membrane, change different requirements), and according to the customer's production Flow can be appropriately increase or decrease the size of Layers, filter plate for production, so the machine has multi-usage. Filter board the plane threaded mesh, advanced structure, deformation, easy clean, and it can effectively increase the Length of membrane life-span, so as to reduce the production cost, and the stainless steel is equipped with infusion pump, the motor powers, power saving with roller next. Base, convenient operation, flexible mobile use, can move. (this Specification Layers, with the Flow, Index, Index greater than the old 2T/h - 3T/h, this machine has production Index: rotogravure - 200-300 - rotogravure, rotogravure - 400). |
| Index |
Specifiction (mm) |
Layers |
Filtering area
( M2) |
membraneAperture (um) |
Filtering pressure (Mpa) |
Water Flow( T/h ) |
Electric power (Kw) |
Shape dimension (mm) |
Inport ( mm) |
Export ( mm) |
| TY |
Ф100 |
10 |
0.078 |
0.8 |
0.15 |
0.8 |
0.55 |
600×300×600 |
15 |
15 |
| TY |
Ф150 |
10 |
0.170 |
0.8 |
0.15 |
1.5 |
0.55 |
650×380×650 |
20 |
15 |
| TY |
Ф200 |
10 |
0.314 |
0.8 |
0.15 |
2.0 |
0.55 |
650×400×700 |
20 |
15 |
| TY |
Ф300 |
10 |
0.7 |
0.8 |
0.2 |
4.0 |
1.10 |
700×500×800 |
25 |
20 |
| TY |
Ф400 |
10 |
1.25 |
0.8 |
0.2 |
6.0 |
1.10 |
900×600×1000 |
38 |
25 |
| TY |
Ф400 |
16 |
2.0 |
0.8 |
0.3 |
9.0 |
1.50 |
1000×600×1000 |
38 |
25 |
| TY |
Ф400 |
20 |
2.5 |
0.8 |
0.3 |
10 |
1.50 |
1100×600×1000 |
38 |
25 |
| TY |
Ф400 |
24 |
3.0 |
0.8 |
0.3 |
12 |
2.20 |
1200×600×1000 |
38 |
25 |
| TY |
Ф400 |
32 |
4.0 |
0.8 |
0.3 |
14 |
2.20 |
1320×600×1000 |
45 |
25 |
| Notes: The areas can be added according to need. the difference between press pump and Granfou pump,24 layers is the maximum with big flow.This horizontal frame filter can as large as 60 layers, and adoped liquid pressure. |
|
Specifiction and parameters
IndexSpecifiction |
Layers |
Filtering area(m2) |
Filtering mediumAperture(um) |
Flow(t/h) |
Pump Electric power |
TY-1-200*200 |
10 |
0.4 |
0.8 |
3 |
1.1 |
TY-1-300*300 |
10 |
0.9 |
0.8 |
5 |
1.1 |
TY-1-400*400 |
10 |
1.6 |
0.8 |
8 |
1.1 |
TY-1-400*400 |
20 |
3 |
0.8 |
12 |
1.5 |
TY-1-400*400 |
26 |
4 |
0.8 |
14 |
3 |
TY-1-400*400 |
32 |
5 |
2.0 |
16 |
3 |
TY-1-450*450 |
38 |
6 |
2.0 |
18 |
4 |
TY-1-450*450 |
50 |
8 |
2.0 |
20 |
4 |
TY-1-450*450 |
62 |
10 |
2.0 |
22 |
4 |
Notes:(1 large Filtering area filter can be customed.(2)Booster pump should avoid to increase price difference explosion-proof electric |
|
|
