Microporous membrane(folding)filter
Material:
Polypropylene is the main material of folding filter,support layer, cover, inside and outside barrels.
Welding:
Hot welding.
Application:
Medicine, food, chemical and electronic industry.
Index (10”filter)
Filtering Precision:Air 0.2um
Liquid：0.2um,0.45um,1.0um,2.0um,5.0um.
Filtering area:0.72M2
|
 |
Polypropylenefilter:(PP)
Material:Polypropylene memblane is the medium of polypropylene filter .
Feature:
Low press, high flow, can be washed for many times, time-lasting, great filtering precision, which enssure it is suitable for prefiltering and clean filtering. |
|
Polyether sulphone filter:(PESU)
Material:Polyether sulphone memblane is the medium of Polyether sulphone filter.
Feature:
The product is a kind of the hydrophilic aseptic folding filter, 80% of the area is micro porous, and it has big flow, the adsorption of protein and microbial agents is lower the Nylon memblane and vinegar fiber memblane. |
 |
|
Ptfe filter:(PTFE)
Ptfe filter’s medium is ptfe memblane. The properities can be widely used in chemical field. It has hydrophobic and the hydrophilic.
Hydrophobic:The air filtering can be aseptic,with big flow, high temperature , acid, alkali resistant. It has wide application, and can be used for fermentation, carbon dioxide, nitrogen, compressed air.
The hydrophilic:The liquid filtering can be aseptic.and the chemical application is wide, it can be resistant of acid, alkali and so on.
All the above items have been tested. |
 |
|
PP meltblown |
Products Specification
PP-1000 type
Outside diameter is 63.5mm.Inside diametre is 27.6mm, the length can be 10,20,30,40 inch
PP-222type(insert)
Outside diameter70mm. One end has an open. There are two closed rings,and the length can be 10,20,30,40 inch
Advantages
－－Small volume, big filtering area, high pressed resistant.
－－Without the Aperture and the pressure off.
|
 |
－－Clean layer of oil;
－－Time-lasting, can be washed for many times.
－－Compared with bee nest filter:(1)without any chemical oil or foam.
(2) Average micro porous increase the flow;(3)less block.
－－The hydrophilic and and hydrophilic .
－－Polypropylene material,corrosion resistant, wide application. |
|

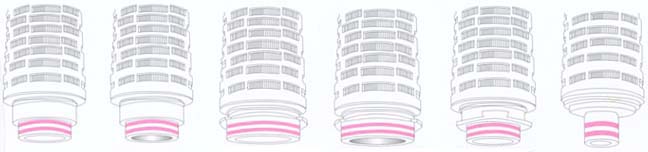

| Two flat ends(Plate
opening)Ф68mm DiameterФ28mm |
Two flat ends(Platestop)Ф68mm
DiameterФ28mm |
Fin for stable (Spear) |
222typesocketФ44.5mm |
| 1 |
2 |
3 |
4 |
| 222Stainless steel type socketФ44.5mm |
226type socketФ57mm Two O type Rings with three ears(Second cards) |
226Stainless steel typesocketФ57mm Two O type Rings with three ears(two cards) |
223typesocketФ44.5mm Two O type Rings with three ears(three cards) |
215typesocketФ30mm |
| 5 |
6 |
7 |
8 |
9 |
Others:Stainless steelfilter,Wire wound filter, filter specialized for carbon,bigfilter,decoloring filter. |
|
