Introduction

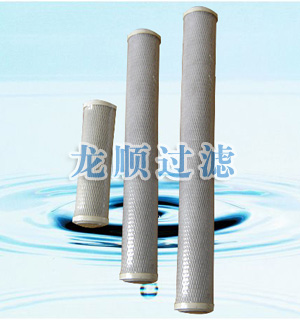

Carbon filter is a new type of deep filter. It was pressed to form filter. The product is good at absorb carbon particles. It has the precision properties, and can effectively remove the particles, iron corrosion and so on.
Second Properities
1,It connect adsorption,filtration, interception and catalytic together.
2,Prevent of acid, alkali, salt and different kinds of organic solvents.
3,High precision of filtering with big flow, less press differental and so on.
Third Application
The product can be widely used in pure water, paints, solution and so on.
Fourth Specifiction
Length:10 inch(254mm/250mm)20 inch(508mm/500mm)30 inch(762mm/750mm)40 inch(1016mm/1000mm)
Diameter:65mm
Inside diametre:30mm
Precision:1um~~10um
filter Interface:insert type.Pressed type
Fifth:
Index:
Iodine adsorption:900mg/g
Benzene adsorption:20-25%
Methylene group adsorption:13-16ml/g
COD removal:58.25%
Residual chlorine removal:>=96.83%
Sixth:
Properties parameters
Pressure:0.1—0.2kgf/cm
The highest Pressure:7kgf/cm
The highest pressure:4kgf/cm
The highest Temperature:60 Celsius
The biggest flow:8L/min( Clean water under pressure 0.15kgf/cm,10 inch filter)
Special Specifiction can be customed |
|
