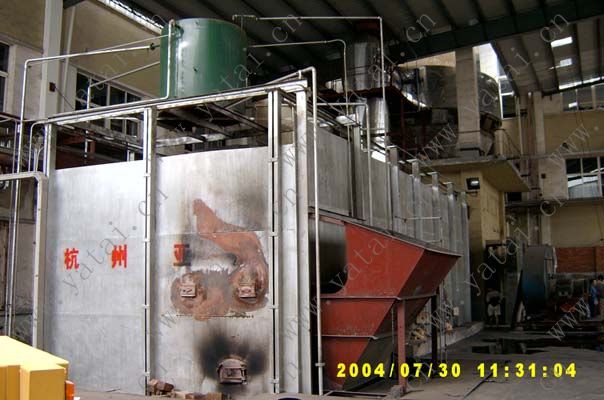

The coal-burning furnace which is researched and manufactured by our company, be used in detergent powder spray drying and other hot air drying with high neat field, and different from the gas-burning hot air generator. The furnace be featured in high-effective , energy saving , cleaning , environmental protection etc,and it is the first choice to alternate the fuel-burning hot air generator.

Principle:
The principle is that adopts crude coal-gas generator and boilers chain in row burning, based on coal-burning technics, equipped with high temperature gas purifying room, the original complex construction is simplified to organic and integrated into entity. The crude coal send to coal hopper, a certain height coal layer sent to burning room, coal is burning and turn out semi-coal gas which get out from the side and into high temperature gas purifying room, the purifying room is made up of refractory masonry, high temperature semi-coal gas burning again, little dust is descent by agglomeration in the room. The purified hot air is about 1200 ? mixed with certain amount cool air into 360 ? hot air in mixing room, and into spray drying tower for drying process. The hot air temperature can be adjusted according requirement. The fired coal slay discharged in other end to slag machine, then send to trolley or belt conveyer to transport away.

Technique features and advantages:
Crude coal burned in coal-burning furnace, inner temperature is high and steadily, which can be burned out completely, the caloric availability is high, flame length can be adjust by coal gas generate speed, and flame neat is high, concretely advantages in following seven points:

	Semi-automatic control the burning process, which can make the burning in best status, carbon content in coal slay is low, furnace inner temperature is steadily and also do the heated product quality.
	Hot air cleanliness is equivalent with diesel oil-burning effect, have no effect on the product whiteness.
	Hot air temperature is adjustable, range is in 300 - 420 ? .
	Low cost, less than oil-burning, and less 10 - 30% than other coal-burning means, 100Kg coal consumption for 1 ton detergent powder production, and it is only RMB 30~40, which is one fourth of the diesel oil cost.
	Burning in normal pressure, no inflammable ? explosive ? poisonous gas bring out, operation is easy and safe, workers simple trained and can be workable.
	The exhaust air is to the environmental protection standard, no the secondary pollution, the operation conditions is clean.
	The equipment is durable, more than one years work in normal and trouble free condition, more than three year overhaul life.
