 Butterfly valve |
Special light ventilation-purposed Butterfly valve TQD341W-0.1C, TQD941W-0.1C
Main performance parameters
Nominal pressure |
0.10 |
MPa |
Shell test pressure |
0.02 |
Suitable temperature |
≤350 |
℃ |
Suitable medium |
Flue gas, air |
Leakage rate |
≤1% |
Parameters of Supported Electric device
Nominal diameter (DN) |
Electric device Model |
Power (kw) |
Opening and closing time of One way (S) |
≤350 |
QB30-1 |
0.12 |
15 |
400-500 |
QB60-1 |
0.18 |
15 |
600-1000 |
QB120-1 |
0.37 |
15 |
1200-1400 |
QB250-1 |
0.55 |
15 |
1600-1800 |
TQ4000 |
0.75 |
45 |
2000-2400 |
TQS000 |
1.5 |
45 |
2600-3000 |
TQ16000 |
22 |
45 |

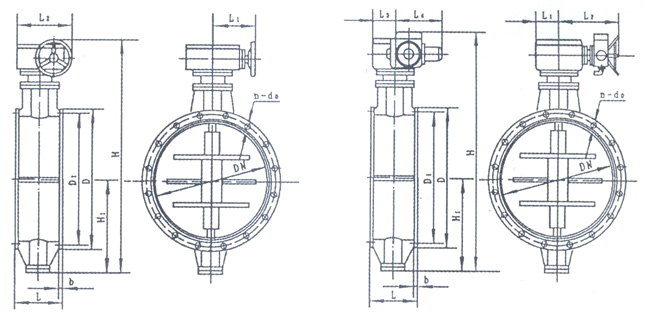

Structure diagram:
 |
|
|
|
|
