 Butterfly valve |
Wear-resisting dust gas Butterfly valve
Main performance parameters
Nominal pressure |
0.10 |
MPa |
Shell test pressure |
0.15 |
Suitable temperature |
≤350 |
℃ |
Suitable medium |
dust gas, Flue gas |
Medium velocity |
≤20 |
m/s |
Leakage rate |
≤0.8% |
The materials of major parts
Name |
valve body, Butterfly plate |
valve seat |
Valve shaft |
Materials |
Carbon steel |
ferromanganese |
Stainless steel |

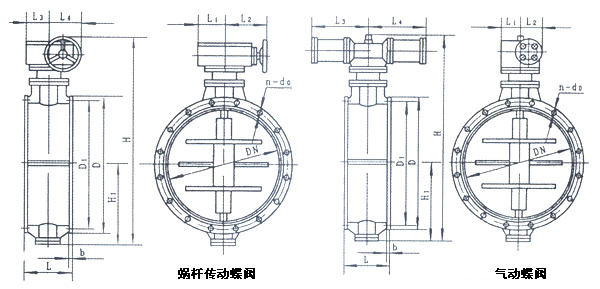

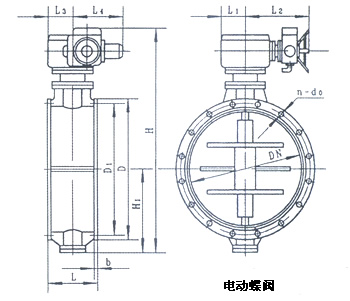

Structure diagram:
 |
|
|
|
|
