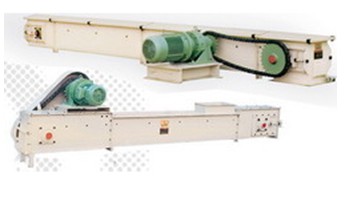

| MS series embedded scraper transporter |
| |
 |
| |
|
In a closed casing by moving the chain scraper and materials friction the continuous output, chain scraper at run time buried in conveyed material, fixed on the traction chain scraper in closed in the trough for conveying bulk material conveyer. The conveyor and scraper traction chain buried within the material, the scraper accounted for only a portion of the chute section, for most of the section material chute. It can be horizontal, inclined and vertical transportation of materials.
|
|
|
|
In a closed casing by moving the chain scraper and materials friction the continuous output, chain scraper at run time buried in conveyed material, fixed on the traction chain scraper in closed in the trough for conveying bulk material conveyer. The conveyor and scraper traction chain buried within the material, the scraper accounted for only a portion of the chute section, for most of the section material chute. It can be horizontal, inclined and vertical transportation of materials. When the horizontal conveyor, scraper used for flat bar, using the embedded material chain and scraper for bulk material layer of the cutting force is greater than the groove wall of bulk resistance theory, the bulk material with a scraper together moving forward, the movable material layer height and width ratio in certain ratio range, material flow is stable. Buried scraper conveyor in vertical, of materials by the scraper chain in the direction of movement of the pressure, the material produced in the transverse direction of the side pressure formed material, internal friction. At the same time as the horizontal section of the continuous feeding, lower material successively on the upper material to produce tractive force. This frictional force and tractive force is sufficient to overcome the material in the machine groove resulted from the movement of the external frictional resistance and the materials of their own weight, so that the materials in the form of a continuous whole stream is promoted.
|
|
|
|
- It can not only horizontal conveyor can tilt and vertical transmission. Not only can the single delivery, but also combined arrangement, tandem conveyor. Can be multi-point feeding, can also be multiple points discharging, process layout is more flexible. As the shell is closed, when transporting materials can significantly improve working conditions, to prevent environmental pollution.
|
|
|
|
Can be widely used in chemical industry, machinery, metallurgy, light industry, food, medicine, transportation, electric power department, used for conveying powdery, granular and small shape material.
To transport materials for example: coal, coal, ash, carbon, ammonium bicarbonate, ammonium chloride, sulfur iron ore, copper concentrate powder, alumina powder, gypsum powder, lime powder, baking soda, urea, active carbon, sodium chloride, calcium silicate, asbestos powder, synthetic resin, rubber powder, calcium carbide, clay synthetic fertilizers, pesticides, granular powder, barium sulfate, ammonium sulfate, sodium carbonate, granular powder, soybean, rice, wheat, pharmaceutical, sugar, starch, broken charcoal, wood chips, sawdust, polyvinyl alcohol synthetic detergent, fertilizer and so on. Application of buried scraper conveyor to transport high temperature, toxic, flammable and explosive, wear resistance strong, highly corrosive, adhesion strong, suspension is very strong, can be designed for: high temperature resistant, corrosion resistant, wear resistant, full airtight type and explosion-proof type special models, the factory can produce. Horizontal type embedded scraper conveyer with general type and large inclined type, ordinary type installation angle 0 °< α < 15°, large inclined installation angle is 15 °< α < 30°.
|
|
|
|
Model |
MS16 |
MS20 |
MS25 |
MS32 |
MS40 |
Width
B (mm) |
160 |
200 |
250 |
320 |
400 |
Height of Machine groove h (mm) |
160 |
200 |
250 |
320 |
360 |
Scraper chain |
Distance between chain t(mm) |
100 |
125 |
160 |
200 |
200 |
Type and code of chain |
Die forging chain, roller chain, double-plate chain |
DL10 |
DL12.5 |
DL16 |
- |
- |
DL10 |
DL12.5 |
DL16 |
- |
- |
- |
- |
- |
BL20 |
BL20 |
Type and code of Scraper |
T |
√ |
√ |
√ |
- |
- |
U1 |
- |
- |
- |
√ |
√ |
Speed of chain V (m/s) |
0.16 |
√ |
√ |
√ |
- |
- |
0.20 |
√ |
√ |
√ |
√ |
√ |
0.25 |
√ |
√ |
√ |
√ |
√ |
0.32 |
√ |
√ |
√ |
√ |
√ |
Quantity of delivery Q (m3/h) |
11-25 |
17-39 |
23-54 |
45-88 |
67-124 |
Motor
Power
(kw) |
1.5 |
√ |
√ |
√ |
√ |
√ |
2.2 |
√ |
√ |
√ |
√ |
√ |
3.0 |
√ |
√ |
√ |
√ |
√ |
4.0 |
√ |
√ |
√ |
√ |
√ |
5.5 |
√ |
√ |
√ |
√ |
√ |
7.5 |
√ |
√ |
√ |
√ |
√ |
11 |
- |
√ |
√ |
√ |
√ |
15 |
- |
√ |
√ |
√ |
√ |
18.5 |
- |
- |
√ |
√ |
√ |
22 |
- |
- |
- |
√ |
√ |
30 |
- |
- |
- |
√ |
√ |
37 |
- |
- |
- |
- |
√ |
Max delivery Length L0 (m) |
80 |
80 |
80 |
80 |
80 |
Allowable Angle of inclination for installation |
0°≤α≤15° |
|
|
|
|
|
|
|
|
 |
