| Stainless steel reaction kettle |
| |
 |
| |
|

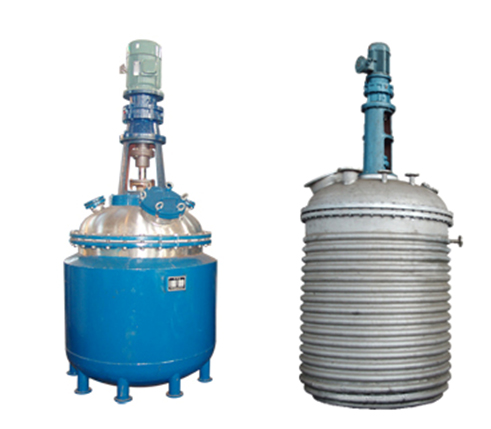

The reactor is composed of a pot body, the pot, blender, jacket, supporting and driving device, seal device and other components, materials and hole can be based on user requirements development process. Heating the form of electric heating, oil heating, steam heating, water heating ( or cooling ), open flame heating.
|
|
|
|
|
- The jacket is divided into: jacket and the outer half pipe jacket type, oil heating type are provided with guiding device. Stirring paddle, usually in the form of a self-anchored, frame type, spiral type, scraping the wall. High speed type dispersion impeller, turbine type, high shear, propeller, for customers according to the selection of technology. Drive in the form of general motors, explosion-proof motor, electromagnetic speed regulating motor, frequency converter, a cycloid needle wheel reducer, worm gear, planetary stepless speed changing type. Shaft seal for ordinary water cooling packing seal, combined PTFE packing seal, mechanical seal. Discharging valve, exhibition valve.
|
|
|
|
|
Nominal Volume
(L) |
Actual Volume
(L) |
Heat exchange area of jacket
(m2) |
Diameter of Emptying valve
(mm) |
Size (mm) |
D |
D0 |
D1 |
D2 |
D3 |
H |
H1 |
H2 |
H3 |
L |
50 |
71 |
0.34 |
70 |
500 |
350 |
700 |
806 |
608 |
465 |
300 |
265 |
945 |
2030 |
100 |
128 |
0.66 |
70 |
600 |
420 |
800 |
916 |
708 |
565 |
320 |
300 |
945 |
2170 |
200 |
247 |
1.26 |
80 |
700 |
190 |
900 |
1018 |
810 |
770 |
350 |
345 |
953 |
2440 |
300 |
369 |
1.75 |
80 |
800 |
560 |
1000 |
1128 |
910 |
870 |
400 |
380 |
1154 |
2770 |
500 |
588 |
2.64 |
80 |
900 |
630 |
1100 |
1230 |
1010 |
1070 |
500 |
405 |
1154 |
3030 |
1000 |
1250 |
4.54 |
100 |
1200 |
840 |
1400 |
1568 |
1312 |
1270 |
500 |
480 |
1276 |
3360 |
1500 |
1720 |
5.34 |
100 |
1300 |
910 |
1450 |
1622 |
1389 |
1470 |
500 |
505 |
1276 |
3670 |
2000 |
2160 |
7.02 |
100 |
1300 |
910 |
1450 |
1622 |
1389 |
1815 |
600 |
505 |
1276 |
4010 |
3000 |
3380 |
8.61 |
125 |
1600 |
1120 |
1750 |
1964 |
1690 |
1810 |
800 |
580 |
1326 |
4185 |
5000 |
5981 |
11.79 |
150 |
1600 |
1200 |
1750 |
1964 |
1690 |
2140 |
800 |
580 |
1520 |
5240 |
6300 |
|
|
150 |
1750 |
1220 |
1900 |
2196 |
|
|
|
|
|
|
8000 |
|
|
150 |
2000 |
1400 |
2200 |
2602 |
|
2898 |
1300 |
650 |
|
|
10000 |
|
|
150 |
|
|
|
|
|
|
|
|
|
|
12500 |
|
|
150 |
|
|
|
|
|
|
|
|
|
|
15000 |
|
|
150 |
|
|
|
|
|
|
|
|
|
|
|
Size of pipe
Nominal Volume |
a |
b |
c |
d |
e |
f |
g |
h |
Emptying
outlet |
50, 100 |
80/手视 |
70 |
70 |
|
70/light |
|
70 |
|
70 |
200 |
125/Hand hole |
80 |
70 |
80 |
70/light |
70 |
|
70/sight |
80 |
300 |
125/Hand hole |
100 |
70 |
80 |
70/light |
125 |
|
70/sight |
80 |
500 |
125/Hand hole |
100 |
70 |
100 |
80/light |
125 |
|
80/sight |
80 |
1000 |
300×400 |
125 |
100 |
100 |
100/light |
125 |
100 |
100/sight |
100 |
1500 |
300×400 |
125 |
100 |
100 |
125/light |
125 |
100 |
125 |
100 |
2000 |
300×400 |
125 |
100 |
100 |
125/light |
125 |
100 |
125 |
100 |
3000 |
300×400 |
125 |
100 |
100 |
125/light |
125 |
100 |
125 |
125 |
|
|
|
|
|
|
|
|
 |
