| T200-800 series Alcohol recovery tower |
| |
 |
| |
|
|

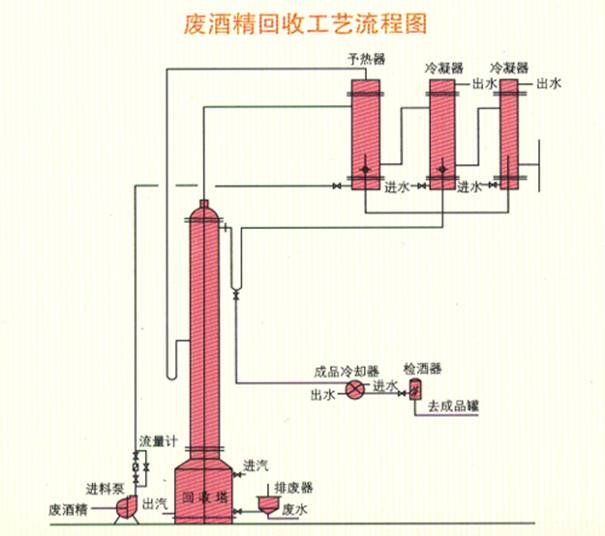

| Alcohol recovery tower using alcohol with boiling point lower than the boiling point of the solution to other principles, with a slightly higher than the boiling point temperature of alcohol, will need to recycle of dilute alcohol solution is heated to volatilize, through the tower body distillation, separation of pure alcohol gas, increase the alcohol concentration, alcohol recovery to achieve.
|
|
|
|
- The device adopts efficient metal stainless steel packings.
- Distillation tower of stainless steel, thereby preventing the iron block tower packing phenomenon, extended the device lifetime.
- The device where alcohol exposure equipment parts such as condenser, a surge tank, a cooling coil pipe are made of stainless steel, to ensure that finished products alcohol is not contaminated.
- Distillation kettle with a detachable work U type heating tube, during the overhaul of U type heating pipe out of tank, easy on the outer walls of the heating pipes and the distillation kettle wall cleaning.
- The device can be in batch production, can also be continuous, continuous production.
|
|
|
|
| The device is suitable for pharmaceutical, food, light industry, chemical industry and other industries dilute alcohol added, also applies to other soluble coal distillation of methanol. The device according to the needs of users, according to 30 dilute distilled alcohol to 90 - 95 alcohol, refined alcohol degree requirements higher, can increase the reflux ratio, but the yield decreases accordingly. |
|
|
|
Specifications Model |
T-200 |
T-300 |
T-400 |
T-500 |
T-600 |
T-800 |
Tower Diameter (mm) |
ф200 |
ф300 |
ф400 |
ф500 |
ф600 |
ф800 |
Tower Volume (L) |
640 |
1220 |
1450 |
2300 |
2500 |
3200 |
Tower Height (mm) |
6000 |
7000 |
7000 |
7000 |
7500 |
7500 |
Volume of high position tank (L) |
300 |
400 |
650 |
800 |
1000 |
1500 |
Condensing area (m2) |
5 |
9 |
11 |
22 |
30 |
45 |
Cooling area (m2) |
1 |
1.5 |
2.2 |
6 |
8 |
15 |
Heat exchange area (m2) |
3.0 |
6 |
6.5 |
17 |
20 |
32 |
Production capacity (kg/h) |
90℃ |
35 |
80 |
150 |
250 |
320 |
450 |
95℃ |
26 |
64 |
120 |
200 |
240 |
380 |
Recovery concentration (%) |
>90 |
Packing form |
Stainless steel screen corrugated or ceramic corrugated |
Weight (kg) |
1100 |
1900 |
2300 |
3800 |
4500 |
6800 |
Size (mm) |
2300×700
×7300 |
2600×800
×7500 |
2500×1000
×9000 |
3000×1200
×10000 |
3500×1400
×10000 |
4200×1800
×14000 |
|
|
|
|
|
|
|
|
 |
