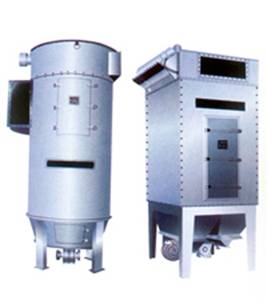

| MC series Pulse bag-type dust remover |
| |
 |
| |
|
The main products are: process equipment, heat transfer equipment, drying equipment, crystallization apparatus, evaporation equipment, transportation equipment. Products of our factory has developed into 20 major categories, more than 100 kinds of specifications varieties. Proprietary features of Engineering: the production of complete sets of projects of tannic acid, gallic acid production of complete sets of projects, activated charcoal production of complete sets of projects. Has its own intellectual property rights of the eight national patents, of which a multilayer vibrating fluidized bed dryer for a total of four national patents, is currently the leading domestic level.
|
|
|
|
| Dust air flow from the inlet into the box body, part of the settlement, slight dust floating by bag detention, purify the air through the filter bag, venturi tube entering into the box body, exhausted from the air outlet. Product attached to the bag wall dust continues to increase, so that the resistance of the dust remover is increased, in order to make the equipment resistance is maintained in limit (usually 80-120 mm within the water column ), to remove accumulated attached to the bag wall of dust, ash is controlled by periodic sequence trigger instrument control valves opening pulse valve, so that the gas packet compressed air by jet pipe hole jet ( a fan ), through the venturi induced several times in a wind in the surrounding air ( wind two times ), into the bag, the bag in an instant expansion, and accompanied by flow reverse shake off the dust, shake off the dust was to fall into the ash hopper, the row ash valve to exhaust the body.
|
|
|
|
- Novel design, the air intake structure, coarse particles of a high temperature falls into the ash hopper directly, effectively protects the filter bag. The long bag, under the same processing power equipment covers an area of small, more convenient for the transformation of the old plant.
- The separated room separation line cleaning, high efficiency, two times less dust adsorption, and effectively reducing the energy consumption of equipment, bag and pulse valve fatigue degree is reduced correspondingly, doubled the bag and valve life, reduce the number of equipment operation and maintenance costs.
- Maintenance for bag can not stop system fan, the normal operation of the system under the conditions of divided chamber.
- Bag bag adopts a spring tensioning structure, convenient disassembly and assembly, good sealing performance.
- The box through the air tightness design, and kerosene leak detection, maximum extent possible to reduce air leakage.
- The whole device controlled by PLC, realize automatic dust, ash discharge, automatic temperature control and temperature n.
|
|
|
|
| The device is suitable for pharmaceutical, food, light industry, chemical industry and other industries dilute alcohol added, also applies to other soluble coal distillation of methanol. The device according to the needs of users, according to 30 dilute distilled alcohol to 90 - 95 alcohol, refined alcohol degree requirements higher, can increase the reflux ratio, but the yield decreases accordingly. |
|
|
|
Item Model |
MC24 |
MC26 |
MC48 |
NC60 |
MC72 |
MC84 |
MC96 |
MC120 |
Filter area (m2) |
18 |
27 |
36 |
45 |
54 |
63 |
72 |
90 |
Filter bag quantity (p) |
24 |
36 |
48 |
60 |
72 |
84 |
96 |
120 |
Filter wind speed (m/min) |
2-4 |
2-4 |
2-4 |
2-4 |
2-4 |
2-4 |
2-4 |
2-4 |
Airflow (m3/h) |
2160
-4300 |
3250
-6480 |
4320
-8630 |
5400
-10800 |
6450
-12900 |
7550
-15100 |
8650
-17300 |
10800
-20800 |
Max Size (l)
w 1700 h 3700(mm) |
1025 |
1425 |
1820 |
2225 |
2625 |
3025 |
3585 |
4385 |
Ash remover |
number of Pulse valve (p) |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
20 |
Consumption quantity of compressed air
(m3/h) |
0.07-0.15 |
0.11-0.22 |
0.15-0.30 |
0.18-0.37 |
0.22-0.30 |
0.25-0.50 |
0.29-0.56 |
0.37-0.73 |
Compressed air (kg/cm2) |
0.5-0.7 (not less than 0.4) |
|
|
|
|
|
|
|
|
 |
