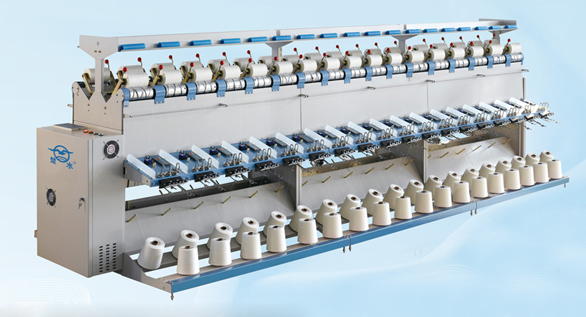

GLFA-838 Doubling Winder

Features:
Our company designed and made the machine. It is a new mode spinning machine. The machine is able to double two or three yarns to one and clew for cotton, wool, chemical fiber etc.
GLFA-838 Doubler manufactured on electrical design, simple construction, easy mounting, convenient operation and the machine has central computer device, spindle motor, length controlled by electrical, auto stop when spindle full, prevent recover by electrical, invert speed adjuster, single spindle controller, auto stop when yarn broken, spindles separate, digital memory, etc.
Optional: 1. Air splicer    2. Traveling cleaner

Technical Specification:

Model

Double Sides, Single Layer

Spindle Gauge

280/320mm

No. of drums

96 drums

No. of yarns

2-3 yarns

Take-up Speed

300-800m/min

Take-up Type

Cylinder

Package Size

φ130×φ200×L152mm

Driving Mode

Single motor per drum

Anti-ribboning Mode

Electronic

Motor Power

60w/drum  90w/drum

Dimension

L(460+1680×n)×B1650×H1520mm
