Features:
The stability of quality spindle even under high-speed operation;
Adopted pedal brake system, operation ease, extending the life of belt and spindle;
Oil gearbox and special yarn guide curve, winding form very good;
The roller helps to adjust the take-up tension at ease. It is also used for the loose packages for dyeing. |
Specification:
Model |
double sides, single layer, manule guiding yarn(or pneumatic) |
Spindle gouge |
225mm |
panels |
1830mm |
No. of spindles per section |
16 |
Type of spindle |
146 |
Sections |
basic mode 8 sections(max 10) |
Spindle speed |
basic(5000-10000),configure special technological for requirements |
Twist range |
Basic(156-2027), configure special technological for requirements |
Twist direction |
S or Z |
Traverse |
152mm(6”) |
Angle of toper |
14°47’ -21°07’ |
Reversing bobbin |
φ37×170mm |
Winding bobbin |
3°30’, 4°20’, 5°57’ cone, cylinder, dyeing, length 170mm |
Loading amount |
Max 2.3kg |
Over all size |
17160×750×1650mm
（8 sections without dust exhauster） |
Rated motor power |
11kw |
Start mode |
Star-delta slow start\Adaptive Frequency starts |
Tensioner |
capsule |
Spindle driving |
belt circulation driving |
Use range |
8S/2-80S/2 |

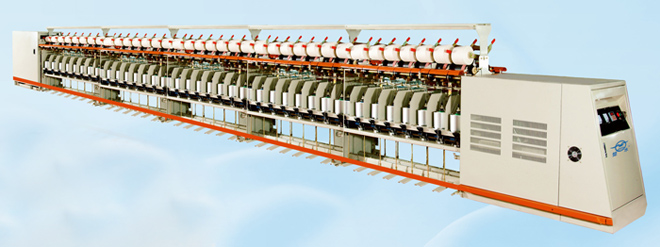

GL321B is the energy saving Two-For-One Twister for shod fiber, improved on the base of the model of GL321A.It is compacter, easier to operate, saving more electricity, only needs as half as the model GL321A's motor power. It twists the 8s/2-80s/2 pure cotton, spandex, acrylon, terylene, their blends, etc.. It is a good choice for the medium-small enterprices. |
