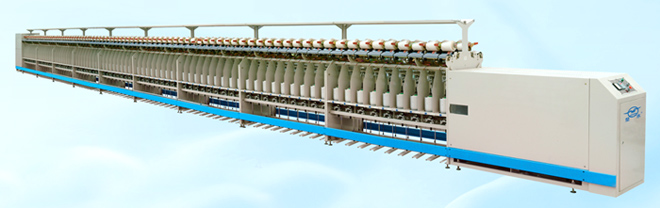

| GL321 Short Fiber two-for-one Twister |
 |
Features:
Special designed Reversing Device, which fits for twisting both yarns and spandex fibers.
The stable quality of spindle run long-time even under high-speed operation;
Duble-geared drive device, reasonable force load transmitting, wider twist range;
Adjustment system through belt tension, ease operation;
Pedal brake system, operation easy, extend the life of belt and spindle;
Winding completed or yarn broken, spindle support lift automatic to avoid yarn grind;
Oil-bath gearbox and special yarn guide curve, made excellent winding form;
he take-up tension on the roller can adjust at ease. It is also suit for winding loose packages for dyeing.
|
|
Technical Specification:
Model |
double sides, single layer, pneumatic guiding yarn(or manual) |
Balloon limitor |
basic mode 9 sections(max 10) |
Spindle speed |
Standard configure(7000-12000rpm), special requirements could deploy based on technological |
Twist range |
Standard configure(156-2027T/M),special requirements could deploy based on technological |
Twist direction |
S or Z |
Traverse |
152-160mm |
Angle of taper |
14°47’-21°07’ |
Reversing bobbin |
φ37.2(Diameter
)×439(OD)×170mm |
Winding bobbin |
3°30’, 4°20’, 5°57’cone, cylinder, dyeing, length 170mm |
Loading amount |
Max 2.5kg |
Overall size |
(9 sections without dust exhauster) |
Motor power |
22kw(10 sections for 30kw) |
Start mode |
Star-delta slow start\Adaptive Frequency starts |
Tensioner |
capsule |
Spindle driving |
belt circulation driving |
Cradle elavating |
mechanical |
|
Technical Specification:
Spindle gauge |
200,225,300,350mm |
Type of spindle |
φ146,φ166,φ196,φ250,φ280 |
Spindles per section |
8,12,14,18,20 |
Spindle speed |
3500-12000rpm |
|
 |
|
|
|
