Features:

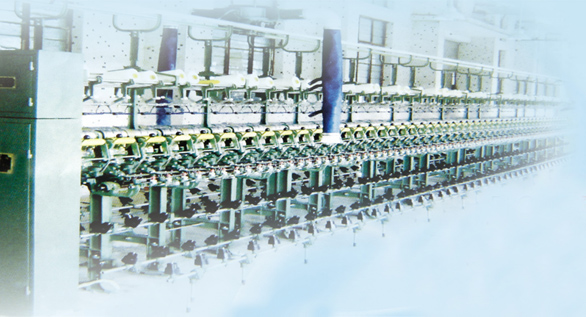

This machine is used to double the cotton, wool, silk, chemical fibre single yarn filament in cubic bobbin and cylingric spool into 2-3 filaments to twist yarns, weave fabrics and other knitting fabrics.
Novel design, logic structure, big height, low noise, easy operation. Nimble, steady and reliable transmission, applies slotted spool for yarn doubling, applicable to large variety.
The entire machine has two working sides which ore transmitted separately for easy regulation. The spool spindles ore double supported, so run steadily and adaptable to high speed production.
Upper spool frames ore oil mode of stainless steel tubes, giving a clean, brilliant and durable effect. |
POINTTYPE |
FAG738A |
FAG738B |
FAG738（AB） |
Number of spindles |
100spindles(standard),80spindles,60spindles |
Spindles(mm) |
254 |
Suitable fibre |
Cotton, chemical fibres or their blends |
wool |
spunsilk |
Speed of doubling (m/min) |
200、320、360、400 |
100-500 |
150、180 |
Grooved drum(mm) |
2.5circles constant velocity type
O.D=81mm,L=178mm, distance of travel H=156mm |
Counts of doubling(ply) |
2-3 |
2-3 |
2-3 |
2-3 |
2 |
Feeding type |
Cone feeding |
Feeding from ring bobbin |
Vertical supply creel |
Horizontal supply creel |
Max.diameter of supply packages |
2Plies 220mm
3plies
220mm(2pcs)
150mm(lpc) |
220mm |
220mm |
Size of full package(mm) |
parallel cheese length 152 Max.Diameter 200 |
Auto-stop mechanism for breakage |
Each spinde is fitted out a set of the mechanism which stops it automatically when single yarn breaks． |
Transmmision and Power |
respectively drived, power of the motors are 2×1.1Kw, 2×0.37Kw |
Overalldimen-sions(mm) |
length |
100spineles |
13670 |
13670 |
13670 |
13670 |
13280
not take motors of sitting carriage into account |
80spindles |
11130 |
11130 |
11130 |
11130 |
60spindles |
8590 |
8590 |
8590 |
8590 |
width |
1460 |
1460 |
1460 |
1460 |
2200 |
Height |
2320 |
2320 |
2320 |
2320 |
2320 |
|
