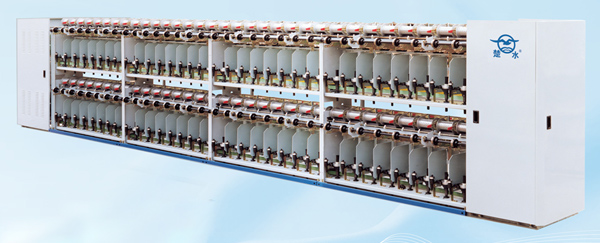

GL310G Two-For-One Twistier For Synthetic Yarn

Features:
The reasonable layer height without carts makes operation easier.
The spidles, treated with special technology, make the machine adaptable to a wider range.
Simple and effective driving system makes the maintenance extremely easy and convenient.

Technical Specification:

Specification	GL310G	GL310G-Ⅱ
Number of Spindles	256
Size of Yarn Feeding Bobbin	φ37.5×φ42×240-320	φ37.5×φ42×240-270
Size of Winding Bobbin	φ140(160)×φ90×165×173	φ140×φ90×165×173 φ110×φ170×130×140
Spindle Gauge	225
Max Spindle Speed(r/min)	18000
Twist(T/M)	300-4000
Twist Direction	Sor Z
Form of Spindle Driving	Belt Circulation Driving
Motor Power(Kw)	2×7.5
