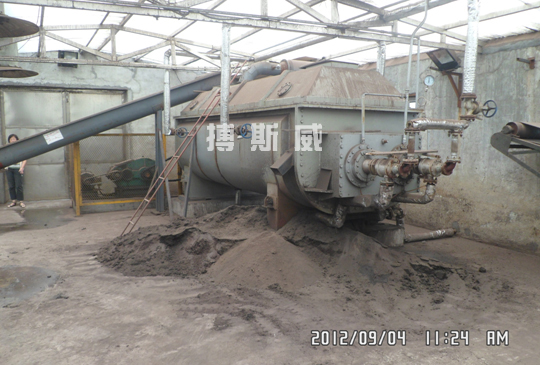

| Sludge drying production line |
| |
 |
| |
|
Paddle dryer is a kind of heat conduction of horizontal stirring type dryer. Because of mixing blade shape solid person paddle, paddle dryer, abroad also known as trough drier or stirring dryer. Paddle dryer abroad has developed over the years, the current models in Japan Nara machinery manufacture as representative, has now developed a double and four axis structure of two, more than 10 specifications of the series of products.
|
|
|
|
Suzhou Myrtle Limited computer accessories
Shanghai reached the source of environmental protection limited company
Yangzhou profit Leather Company Limited
Yunnan Bo Hao biological Limited
Bo Hao Luxi biological Limited
Inner Mongolia Bo Hao biological Limited
Jin Qi Group Company Limited of Japan
|
|
|
|
- Low energy consumption: due to indirect heating, without substantial air carrying away heat, drying and heat insulating layer arranged on the outer wall, slurry material, evaporation of water is only 1.2kg 1kg of water vapor.
- High thermal efficiency: dry heat efficiency up to 80%-90%. Heat transfer coefficient of K is 100 ～300kCal/h. ㎡. C, 10-30kg/h.㎡evaporation.
- The cost of the system is low: the unit effective volume has great heat transfer surface, shortens the processing time, equipment size small. It greatly reduces the building area and space.
- A wide range of materials : the use of different heat media, both treating heat-sensitive materials, but also can deal with the high temperature processing of materials. Commonly used media are: steam, conducting oil, hot water, cooling water. Can be continuous or batch operation, can be applied in many fields.
- Environmental pollution: do not use the outside air, very few powder is carried. The solvent evaporation is very small, easy to deal with. The contaminated material or the solvent to be recovered, can adopt a closed circulation.
|
|
|
|

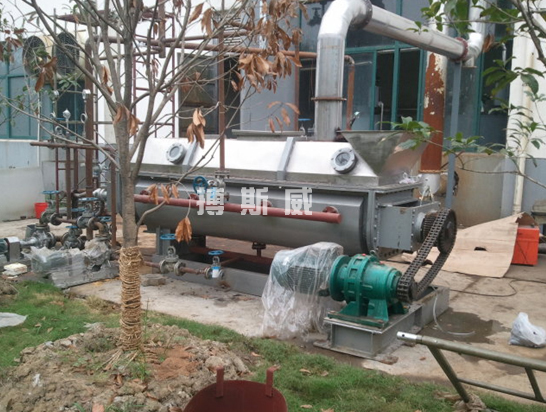

| KJG hollow blade drier is a special sector structure through the hollow blade conduction heat to dry ( cooling ) material low speed stirring type continuous indirect heating equipment. The machine in the jacket structure of the shell has two inlaid with mutually staggered blades parallel rotary shaft, each shaft is inlaid with many medals at a certain interval staggered hollow fan blade, blade two ( feeding shear plane and returns the shear plane), the shaft rotates at a low speed. Heat medium passage arranged on a rotary shaft end of the rotary joint into the hollow rotating shaft and blade, heat transfer and drying, and through the rotary joint discharge machine. In addition, the jacket will also be imported heat medium. Material from the feeding port continuous supply, through the blade in the blade near a local mixing, mixing blades, at the same time with the jacket heat conduction to dry material, the material heating while slow discharge. And by changing the overflow weir height adjusted retention time. The material from the feed into the machine, by the hollow blade is conveyed to the discharge port discharge. In the transportation of materials in the hollow blade stirring, at the same time by hollow blade and the jacket while heating evaporation drying, high thermal efficiency. The machine adopts stepless transmission connection gear box, 5-20 RPM per minute, according to the properties of the materials in regulating speed. Air from the air outlet. |
|
|
|
Jiangsu Bosiwei Engineering Technology Co., Ltd. has twenty-six years of industry experience in production of evaporator, designed products, with superb processing technology, a rich field installation experience and perfect after sale service system, wholeheartedly for customer service.
In the production process, equipment of the design drawings; equipment manufacturing process in a timely manner to customer communications equipment production speed, production quality, and ensure customer engineering progress and equipment manufacturing production synchronization; equipment installation for technical staff to the scene to guide the installation, commissioning, acceptance and technical training and other services of the entire process.
|
|
|
|
|
|
|
|
| |
 |
