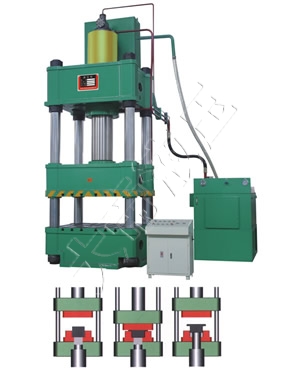

| Four column hydraulic press series--Y32 general four column hydraulic press |
 Optional accessories or functions:
●Traverse table
●Blanking damping device
●Photo-electric safety device
●Floating slide guide and rolling bracket
●Mould quick-acting clamp
●Stroke, pressure, speed digital display, numerical control device
●Touch industrial screen
●Heating and cooling device of hydraulic system
●Feeding device
●Die change trolley
●Slider safety plug
●Mould heating and temperature control device
●PLC programmable controller
●Blank holder and driving system, displacement sensing device.
Main technical parameters
| Model |
Unit |
45T |
63T |
100T |
160T |
200T |
315T |
400T |
500T |
630T |
800T |
1000T |
Nominal force |
KN |
450 |
630 |
1000 |
1600 |
2000 |
3150 |
400 |
5000 |
6300 |
800 |
10000 |
Ejecting force |
KN |
63 |
100 |
200 |
250 |
400 |
630 |
630 |
1000 |
1250 |
1800 |
1600 |
Maximum working pressure |
Mpa |
25 |
24.3 |
25.8 |
25.5 |
24.4 |
24.6 |
24.7 |
25 |
25 |
24.4 |
25.5 |
Slide stroke |
Mm |
350 |
500 |
500 |
500 |
700 |
800 |
800 |
900 |
900 |
1000 |
1000 |
Maximum opening height |
Mm |
600 |
700 |
900 |
900 |
1120 |
1250 |
1400 |
1500 |
1500 |
1800 |
1800 |
Table size |
Front and back |
Mm |
400 |
500 |
580 |
800 |
900 |
1260 |
1200 |
1400 |
1600 |
2400 |
2500 |
Left and right |
Mm |
400 |
500 |
710 |
800 |
900 |
1260 |
1260 |
1400 |
1600 |
1600 |
1800 |
Ejector stroke |
Mm |
120 |
160 |
200 |
200 |
250 |
300 |
300 |
300 |
400 |
400 |
400 |
Slider speed |
Idle stroke downstream |
Mm/s |
40 |
50 |
100 |
100 |
100 |
100 |
100 |
100 |
>100 |
120 |
120 |
work |
Mm/s |
|
|
8-15 |
8-15 |
8-15 |
8-15 |
8-15 |
10 |
12 |
5-12 |
5-12 |
Return stroke |
Mm/s |
60 |
60 |
60 |
60 |
70 |
70 |
70 |
80 |
65 |
80 |
90 |
Motor power |
KW |
4 |
5.5 |
5.5 |
11 |
11 |
18.5 |
22 |
37 |
55 |
75 |
75 |
Total weight (about) |
T |
2.8 |
3.5 |
5 |
8.5 |
12 |
15 |
22 |
30 |
|
|
|
|
|
