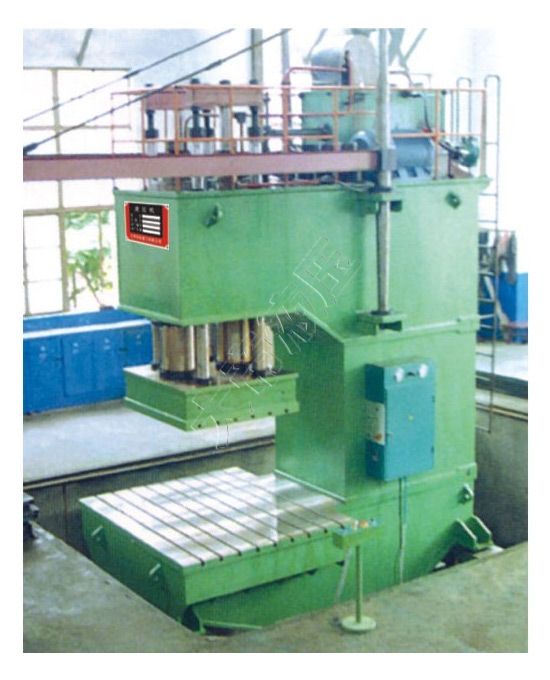

| Single column hydraulic press series--Y41 single column deep throat hydraulic press |
Features:
This machine can be used in correction of large panel, shaft and other parts, it can also be used in the press-fitting of shaft, sleeve parts, etc.
This machine has compact structure, reliable performance, high speed, low noise, small power consumption.
Main technical parameters
Model |
Unit |
100 |
160 |
200 |
315 |
400 |
500 |
630 |
800 |
1000 |
Nominal force |
KN |
1000 |
1600 |
2000 |
3150 |
4000 |
5000 |
6300 |
8000 |
10000 |
| Open height |
|
800 |
800 |
800 |
1200 |
1200 |
1200 |
1400 |
1400 |
1400 |
Slide stroke |
|
500 |
500 |
700 |
800 |
800 |
800 |
1000 |
1000 |
1000 |
Throat depth
|
|
800 |
1000 |
1200 |
1300 |
1300 |
1500 |
1600 |
1600 |
1600 |
Working speed of slider
|
High speed
|
mm/s |
65 |
85 |
100 |
>100 |
>100 |
>100 |
>100 |
>100 |
>100 |
Low speed
|
mm/s |
15 |
24 |
19 |
15 |
15 |
≈10 |
≈10 |
≈10 |
≈10 |
Return stroke
|
mm |
85 |
80 |
80 |
80 |
65 |
|
|
|
|
Table size |
Left and right |
mm |
1000 |
1000 |
1200 |
1800 |
1800 |
1800 |
2300 |
2300 |
2300 |
Front and back |
mm |
1200 |
1200 |
1400 |
1800 |
1800 |
1800 |
1800 |
2300 |
2300 |
| Height of the workbench |
mm |
700 |
700 |
750 |
750 |
|
|
|
|
|
| Slider size |
mm |
300X300 |
300X300 |
400X400 |
600X600 |
600X600 |
800X800 |
800X800 |
1000X800 |
1000X800 |
| Overall dimension of machine tool |
Left and right |
mm |
1000 |
1000 |
1200 |
1800 |
1800 |
1800 |
2300 |
2300 |
2300 |
| Front and back |
mm |
2500 |
2500 |
2800 |
4200 |
4200 |
4500 |
5300 |
5300 |
5300 |
| Overall height |
mm |
2750 |
2750 |
3000 |
5200 |
5200 |
5200 |
5600 |
5600 |
5600 |
| Motor power |
KW |
11 |
15 |
15 |
22 |
30 |
45 |
45 |
75 |
75 |
|
|
