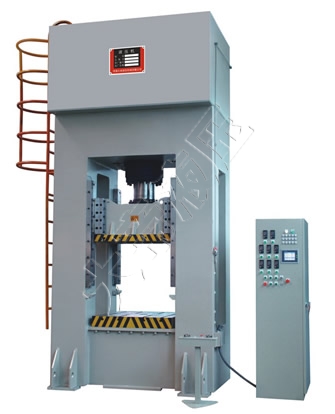

| Multifunctional non-standard dydraulic press series--Y27 frame-type multifunctional general hydraulic press |
Features:
●Frame steel plate welding whole or segregate structure, it will have good rigidity and high precision by adopting vibration or tempering after welding.
●Small shock, reliable performance, long service life, small leakage point.
●High reliability, long service life.
●Can realize the single action.
●Guide rail automatic lubricating device.
●Mechanotronics mechanical-electrical integration.
●Electric system adopts PLC control.
●Can realize pressure setting and stroke setting two forming processes.
●Working pressure and stroke can be adjusted, it is simple for operation.
Application range
Suitable for all the drawing, bending and formingtechniques.
●Large car, agricultural vehicle covering parts and other parts.
●Boiler head, liquefier tank, stainless steel sink, bathing pool, etc.
●Ship, aviation, aerospace and other fields.
●Optional accessories or functions ●Photo-electric safety device
●Traverse table ●Floating slide guide and rolling bracket
●Blanking damping device ●Mould quick-acting clamp
●Touch industrial screen ●Stroke, pressure, speed digital display numerical controller
●Heating and cooling device of hydraulic system, displacement heat transfer device.
●Blank holder slide, hydraulic die cushion pressure regulating device
Main technical parameters
Model |
Unit
|
40T |
63T |
100T |
200T |
250T |
315T |
400T |
500T |
800T |
1000T |
Nominal force |
KN |
400 |
630 |
1000 |
2000 |
2500 |
3150 |
4000 |
5000 |
8000 |
10000 |
Maximum working pressure |
Mpa |
22.2 |
24.3 |
25.8 |
24.4 |
25.5 |
24.6 |
24.7 |
25 |
24.4 |
25.5 |
Maximum opening height |
Mm |
600 |
700 |
900 |
1100 |
1100 |
1250 |
1400 |
1500 |
1800 |
1800 |
Ejecting force |
KN |
63 |
100 |
250 |
400 |
400 |
630 |
1000 |
1000 |
2000 |
2000 |
Ejector stroke |
Mm |
120 |
160 |
200 |
250 |
250 |
300 |
300 |
300 |
3500 |
400 |
Slide stroke |
Mm |
400 |
450 |
600 |
700 |
700 |
800 |
800 |
900 |
1000 |
1000 |
Slider speed
|
Idle stroke downstream |
mm/s |
40 |
40 |
76 |
100 |
100 |
100 |
100 |
100 |
100 |
120 |
Work |
mm/s |
10 |
10 |
8-15 |
8-15 |
8-15 |
8-15 |
8-15 |
5 |
5-12 |
5-12 |
Return stroke |
mm/s |
60 |
60 |
85 |
100 |
100 |
100 |
100 |
100 |
90 |
90 |
Table size
|
Front and back |
Mm |
400 |
500 |
710 |
900 |
1000 |
1200 |
1300 |
1400 |
2400 |
2500 |
Left and right |
Mm |
400 |
500 |
580 |
900 |
1000 |
1200 |
1300 |
1400 |
1600 |
1800 |
Motor power |
KW |
5.5 |
5.5 |
7.5 |
11 |
11 |
18.5 |
18.5 |
37 |
74 |
74 |
Remark |
T |
4.5 |
6 |
8 |
16 |
18 |
22 |
28 |
42 |
70 |
95 |
|
|
