Features:
Glass reinforced plastic hydraulic press is mainly formed by SMC, GMT, LFTD and other composite materials and it is extensively applied in aviation, railroad, automobile, ship, petrochemical, daily necessities and other industries.

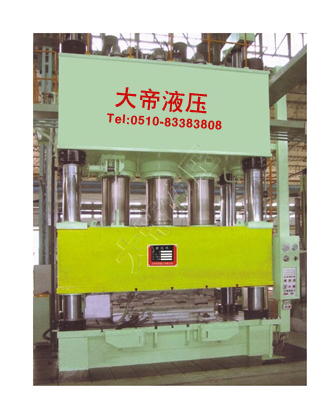

Y71 hydraulic press is glass reinforced plastic pressing equipment, the press can be divided into four column type, combined frame type, overall frame type 3 types. Cylinder adopts overall forging blank, inner pore adopts rolling or honing techniques, sealing element adopt NOK and PAKER products. Hydraulic valve group adopts high quality pile-up valve and pilot valve adopts YUKEN, ATOS and other products; electrical control adopts MITS-UBISHI, OMRON, SIEMENS programmable control, PROFACE, HITECH, SIEMENS touch industrial screen can realize man-machine conversation;
Model |
Unit |
100T |
200T |
315T |
500T |
630T |
1000T |
1500T |
2000T |
Nominal force |
KN |
1000 |
2000 |
3150 |
5000 |
6300 |
10000 |
15000 |
20000 |
Liquid pressure |
Mpa |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
Slide stroke |
mm |
600 |
800 |
800 |
1200 |
1200 |
1600 |
1600 |
2000 |
Open height |
Mm |
900 |
1200 |
1200 |
1600 |
1600 |
2000 |
2000 |
2500 |
Ejector stroke |
Mm |
150 |
170 |
180 |
180 |
180 |
200 |
220 |
250 |
Prepressing force |
KN |
315 |
630 |
1000 |
1500 |
2000 |
3150 |
5000 |
6300 |
Opening mould speed |
KN |
200 |
400 |
630 |
1000 |
1250 |
2000 |
3150 |
4000 |
Demoulding force |
KN |
100 |
200 |
500 |
500 |
500 |
500 |
500 |
500 |
Downstream speed |
Mm/s |
200 |
200 |
200 |
200 |
200 |
300 |
300 |
300 |
Working speed |
Mm/s |
1-6 |
1-6 |
1-6 |
1-6 |
1-6 |
0.5-5 |
0.5-5 |
0.5-5 |
Return stroke speed |
Mm/s |
100 |
I00 |
I00 |
150 |
150 |
200 |
200 |
200 |
Prepressing speed |
Mm/s |
6-25 |
6-25 |
6-25 |
6-25 |
6-25 |
5-30 |
5-30 |
5-30 |
Opening mould speed |
Mm/s |
2-25 |
2-25 |
2-25 |
2-25 |
2-25 |
2-25 |
2-25 |
2-25 |
Demoulding speed |
Mm/s |
5-30 |
5-30 |
5-30 |
5-30 |
5-30 |
5-30 |
5-30 |
5-30 |
Effective size of workbench |
Left and right(mm) |
630 |
900 |
1200 |
1400 |
1600 |
3200 |
3200 |
3600 |
Effective size of workbench |
Front and back
(mm) |
630 |
900 |
1200 |
1400 |
1600 |
2200 |
2200 |
2500 |
Weight |
T |
4.2 |
12 |
22.5 |
43.5 |
56 |
112 |
162 |
222 |
Power of main pump |
KW |
11 |
18.5 |
30 |
45 |
75 |
110 |
180 |
230 |
|
