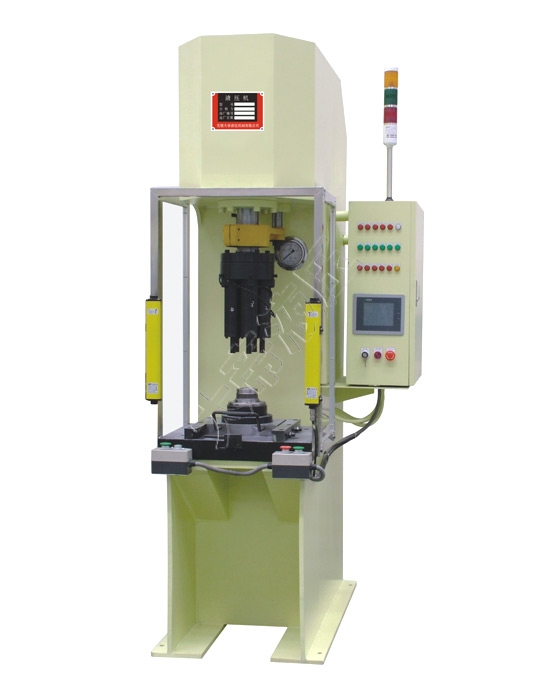

Single column hydraulic press series--YSK pressure management system hydraulic press


Features:
        This machine is the typical processing equipment in motor manufacturing industry, washing machine manufacturing industry, various shafts and various bearings. It has clear display, accurate control, fast response, reliable performance.
Main technical parameters
Model Unit 1T 2.5T 6.3T 10T 16T 25T 40T 63T 100T
Nominal force KN 10 25 63 100 160 250 400 630 1000
Maximum working pressure Mpa 4.2 5 5.1 8.1 13 20.3 23 24.7 26.3
Maximum distance from slider to workbench mm 300 300 450 500 600 600 700 800 800
Maximum stroke of slider mm 120 160 250 300 350 350 400 500 500
Slider speed Downstream speed of slider mm/s 47 48 48 48 48 33 37 24 23
Working speed of slider mm/s 7-15 adjustable
Return stroke speed of slider mm/s 120 120 120 120 120 120 120 120 120
Throat depth mm 100 200 250 250 280 280 320 350 350
Table size Front and back mm 320 320 480 480 500 500 550 600 600
Left and right mm 480 480 550 550 650 650 700 800 800
Height of the workbench mm 700 700 710 710 710 710 710 710 710
Blanking aperture mm 30 70 80 80 100 100 100 120 120
Motor power kw 1.1 2.2 2.2 3 5.5 5.5 5.5 5.5 5.5
Overall dimension of machine tool Front and back mm 530 900 900 1100 1100 1100 1350 1530 1630
Left and right mm 500 730 730 960 960 960 1000 1600 1600
Height above ground mm 1470 1800 1910 2200 2300 2300 2700 2900 2600
Total weight (about) kg 250 700 1000 1300 1500 2300 3500 3500 4500
