Features:
This machine is widely applied for the thermoforming of thermosetting plastic, melamine tableware, bakelite, insulating materials (DMC, SMC).This product is independently designed and developed by our factory, it has reliable performance.
Main technical parameters
| Model |
Unit |
63 |
100 |
160 |
200 |
Nominal force |
KN |
630 |
1000 |
1600 |
2000 |
Maximum working pressure |
MPa |
25 |
25 |
25 |
25 |
Return stroke force |
KN |
190 |
210 |
210 |
450 |
Ejecting force |
KN |
190 |
190 |
400 |
400 |
Maximum stroke of slider |
mm |
500 |
600 |
500 |
700 |
Maximum stroke of ejector |
mm |
160 |
180 |
180 |
250 |
Maximum distance from slider to workbench |
mm |
800 |
800 |
800 |
1120 |
Working speed of slider |
Fast downstream |
mm/s |
70 |
80 |
60 |
60 |
Maximum in work |
mm/s |
14 |
14 |
14 |
14 |
Low speed |
mm/s |
8 |
8 |
12 |
12 |
High speed |
mm/s |
80 |
80 |
50 |
50 |
Ejector speed |
Low speed |
mm/s |
10 |
10 |
15 |
15 |
High speed |
mm/s |
50 |
50 |
65 |
65 |
Return speed |
mm/s |
80 |
80 |
90 |
95 |
Effective area of workbench |
Left and right |
mm |
580 |
720 |
900 |
900 |
Front and back |
mm |
500 |
580 |
730 |
900 |
Height of the workbench |
mm |
800 |
700 |
700 |
500 |
Dimension of main machine |
Left and right |
mm |
780 |
950 |
1180 |
1340 |
Front and back |
mm |
500 |
580 |
780 |
940 |
Above the ground |
mm |
2900 |
3020 |
3550 |
3960 |
Motor power |
kw |
5.5 |
7.5 |
7.5 |
15 |
Weight |
T |
2.8 |
3.5 |
5.6 |
10 |
|

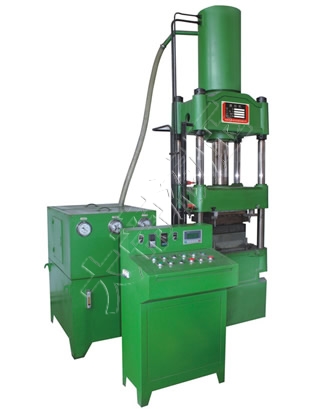

Four column hydraulic press series
