Features
This machine is suitable for motorcycle, engine bearing press-fitting, drawing, reshaping, trimming of auto parts, it is simple to operate and has steady performance.
Main technical parameters
| Model |
Y32-20T |
Y32-30T |
Y32-40T |
Y32-50T |
Y32-80T |
Nominal force |
200KN |
300KN |
400KN |
500KN |
800KN |
Maximum working pressure |
10MPa |
15MPa |
20MPa |
22MPa |
24MPa |
Maximum distance from slider to workbench |
650mm |
750mm |
800mm |
850mm |
1000mm |
Maximum stroke of cylinder |
405mm |
505mm |
505mm |
605mm |
805ram |
Slider speed |
Idle stroke speed |
≈100mm/s |
≈120mm/s |
≈160mm/s |
≈130mm/s |
≈120mm/s |
Working speed |
=12-30mm/s |
≈12-30mm/s |
≈12-30mm/s |
≈12-30mm/s |
≈12-30mm/s |
Return stroke speed |
≈100mm/s |
≈100mm/s |
≈100mm/s |
≈100mm/s |
≈100mm/s |
Effective size of workbench |
Left and right |
700mm |
800mm |
800mm |
900mm |
1200mm |
Front and back |
700mm |
800mm |
800mm |
1000mm |
1000mm |
Overall dimension of machine tool |
Left and right |
1100mm |
1200mm |
1200mm |
1400mm |
1600mm |
Front and back |
1000mm |
1100mm |
1100mm |
1200mm |
1200mm |
Height |
2500mm |
2500mm |
2600mm |
2700mm |
2900mm |
Motor power reference |
5.5KW |
5.5KW |
5.5KW |
7.5KW |
11KW |
|

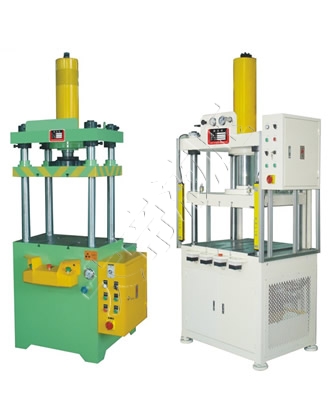

Four column hydraulic press series
