Main technical parameters
| Item |
Unit |
100T |
200T |
315T |
500T |
630T |
800T |
1000T |
Nominal force |
KN |
1000 |
2000 |
3150 |
5000 |
6300 |
8000 |
10000 |
Maximum shut height |
mm |
500 |
600 |
600 |
700 |
750 |
800 |
800 |
Maximum stroke |
mm |
500 |
600 |
600 |
650 |
700 |
750 |
750 |
Pressure head size |
mm |
220 |
250 |
350 |
460 |
520 |
600 |
650 |
Pressure head speed |
Downstream |
Mm/s |
26 |
18 |
20 |
15 |
16 |
15 |
12 |
Return stroke |
Mm/s |
50 |
35 |
33 |
26 |
18 |
18 |
16 |
Left and right displacement distance of the pressure head |
Mm |
About 1200 |
About 1300 |
About 1400 |
About 1600 |
About 1800 |
About 1800 |
About 2000 |
Gantry file distance |
Mm |
1600 |
1800 |
2000 |
2400 |
2600 |
2800 |
3000 |
Table size |
Left and right |
Mm |
1600 |
1800 |
2000 |
2400 |
2600 |
2800 |
3000 |
Front andback |
Mms |
800 |
1000 |
1200 |
1400 |
1500 |
1600 |
1800 |
Blanking hole size of the workbench |
Mm |
120 |
160 |
200 |
220 |
250 |
250 |
250 |
Height of the workbench |
Mm |
750 |
750 |
750 |
800 |
850 |
900 |
1200 |
Motor power |
KW |
7.5 |
11 |
22 |
11×2 |
11, 22 |
37×2 |
37×2 |
Features:

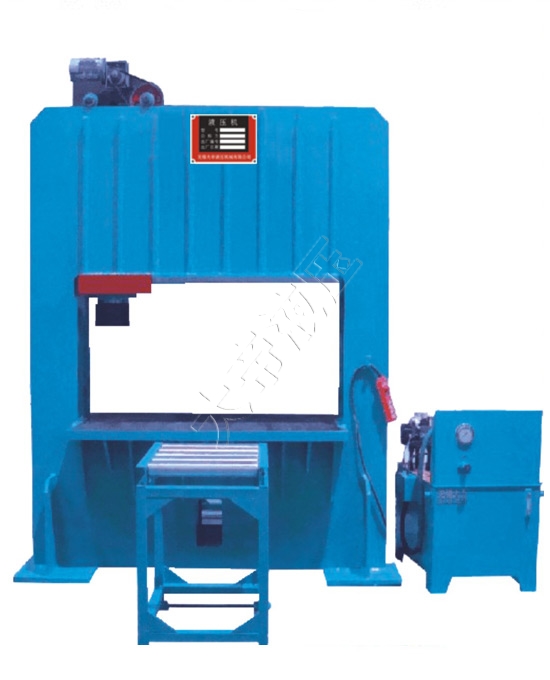

The machine is double column type structure, the front and back is equipped with lifting feeder, the upper and lower pressure head is left and right moveable, hydraulic control adopts cartridge valve integrated system, electricity adopts PLC centralized control.
Application range:
Applied in adjusting, bending and moulding process of metal sheet in steel structure and shipbuilding industry. Optional accessories or functions: Can be matched with lifting appliance: Remote manipulation device: hydraulic system cooling. |
