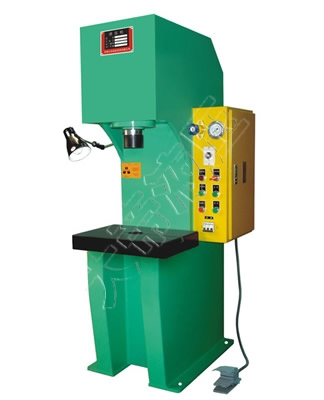

| Single column hydraulic press series--Y41 Single column hydraulic press series |
Features:
Y41 single column adjusting press-fitting hydraulic press is small and medium sized multifunctional hydraulic press, it is suitable for the correction of shaft parts, bar and press-fitting of shaft sleeve parts. It can also finish the bending, coining of panel parts and drawing of simple parts, it can also be used in the pressing of powdery or plastic products with loose requirements.
Y41 products suitable for machine tool, internal-combustion engine, light textile machinery, shaft, bearing, washing machine, automobile motor, air conditioner motor, military industrial enterprise and other industries.
Our company has strong technical force, can meet the requirements of the customers.
Main technical parameters
Model
|
Unit
|
2.5T |
4T |
6.3T |
10T |
16T |
25T |
40T |
63T |
100T |
160T |
250T |
315T |
400T |
500T |
Nominal force
|
KN |
25 |
40 |
63 |
100 |
160 |
250 |
400 |
630 |
1000 |
1600 |
2500 |
3150 |
4000 |
5000 |
Maximum working pressure
|
Mpa |
5 |
8 |
8 |
8 |
12.8 |
16 |
22.2 |
24.3 |
25.8 |
25.5 |
25.5 |
24.6 |
24.7 |
25 |
Maximum distance from slider to workbench |
mm |
350 |
380 |
400 |
500 |
500 |
550 |
600 |
630 |
800 |
1000 |
1000 |
1100 |
1300 |
1400 |
Maximum stroke of slider |
Mm |
160 |
200 |
250 |
300 |
350 |
350 |
400 |
500 |
500 |
500 |
500 |
600 |
700 |
700 |
Downstream speed of slider |
Mm/s |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
36 |
24 |
23 |
20 |
18 |
20 |
Return stroke speed of slider |
Mm/s |
100 |
100 |
100 |
100 |
105 |
105 |
100 |
90 |
90 |
65 |
55 |
65 |
60 |
60 |
Throat depth |
Mm |
160 |
180 |
200 |
250 |
280 |
300 |
320 |
350 |
350 |
325 |
360 |
400 |
450 |
500 |
Table size |
Front and back |
Mm |
320 |
320 |
400 |
430 |
500 |
500 |
550 |
650 |
650 |
650 |
660 |
750 |
800 |
950 |
Left and right |
Mm |
480 |
480 |
500 |
550 |
600 |
600 |
700 |
700 |
800 |
800 |
800 |
900 |
1000 |
1000 |
Height of the workbench |
Mm |
700 |
710 |
700 |
700 |
710 |
710 |
650 |
650 |
730 |
750 |
710 |
700 |
750 |
750 |
Blanking aperture |
Mm |
70 |
70 |
80 |
80 |
100 |
100 |
100 |
140 |
140 |
200 |
200 |
220 |
250 |
250 |
Cylinder diameter |
Mm |
80 |
80 |
100 |
125 |
125 |
140 |
150 |
180 |
220 |
280 |
360 |
400 |
450 |
500 |
Diameter of piston rod center (shank hole) |
Mm |
18 |
18 |
30 |
30 |
30 |
35 |
35 |
40 |
40 |
|
|
|
|
|
Depth of piston rod center (shank hole) |
Mm |
30 |
30 |
60 |
60 |
60 |
60 |
60 |
60 |
65 |
|
|
|
|
|
Diameter of piston rod screw |
mm |
36 |
36 |
50 |
60 |
60 |
74 |
74 |
100 |
150 |
|
|
|
|
|
Oil pump name |
Middle-high pressure vane pump |
Pressure compensation variable axial piston |
Motor power |
Kw |
1.5 |
1.5 |
2.2 |
4 |
4 |
4 |
5.5 |
7.5 |
7.5 |
11 |
22 |
22 |
30 |
45 |
Total weight (about) |
T |
0.6 |
0.7 |
1 |
1.2 |
1.5 |
2 |
2.5 |
4 |
5.5 |
9 |
15 |
18.5 |
28 |
36 |
|
|
