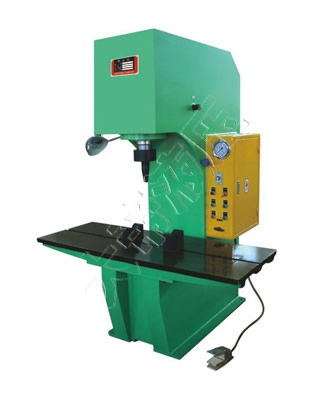

| Single column hydraulic press series--Y41A hydraulic straightener |
Features:
Hydraulic straightener is used in the correction, press-fitting of shaft and sleeve parts, molding, blanking, pressing of relevant parts.
It is suitable for the roller in textile industry, shaft, connecting rod of automobile, motorbike, and correction of various joist steels, U-steels and angle steels. It is easy for operation.
Main technical parameters
Model |
Unit |
Y41A-4T |
Y41A-6.3T |
Y41A-10T |
Y41A-16T |
Y41A-25T |
Y41A-40T |
Y41A-63T |
Y41A-100T |
Y41A-160T |
Y41A-200T |
Nominal force |
KN |
40 |
63 |
100 |
160 |
250 |
400 |
630 |
1000 |
1600 |
2000 |
Maximum working pressure |
Mpa |
8 |
8 |
8 |
12.8 |
16 |
22.2 |
24.3 |
25.8 |
25.5 |
24.4 |
Maximum distance from spindle nost to workbench |
Mm |
80 |
80 |
80 |
120 |
120 |
120 |
200 |
200 |
250 |
350 |
Adjustable speed of spindle nose |
Downstream
Mm/s |
2-65 |
2-65 |
2-60 |
5-50 |
5-50 |
5-50 |
5-40 |
5-38 |
5-38 |
5-30 |
Return stroke
Mm/s |
80 |
90 |
90 |
90 |
90 |
90 |
90 |
90 |
65 |
65 |
Maximum stroke of piston rod |
Mm |
150 |
150 |
180 |
180 |
180 |
180 |
200 |
300 |
300 |
300 |
Throat depth |
Mm |
160 |
160 |
200 |
200 |
200 |
200 |
2580 |
300 |
300 |
320 |
Table size
(Length×Width) |
mm |
1000×300 |
1000×300 |
1650×350 |
1650×350 |
1650×350 |
1650×350 |
2000×500 |
2000×500 |
2000×500 |
2000×500 |
Height of the workbench |
Mm |
710 |
710 |
710 |
710 |
710 |
710 |
710 |
710 |
710 |
710 |
Motor power |
KW |
1.5 |
2.2 |
4 |
4 |
4 |
5.5 |
7.5 |
7.5 |
11 |
15 |
Total weight (about) |
|
1.2 |
1.6 |
1.8 |
2.0 |
2.3 |
3.2 |
4.5 |
6.8 |
9.5 |
11 |
|
|
